Product Details:
|
| Temperature Range: | -70ºC To +200ºC | Temperature Overshoot: | ≤±2ºC |
|---|---|---|---|
| Internal Material: | SUS304# Stainless Steel Plate | External Material: | Plastic Spray Galvanized Color Steel Plate |
| Temperature Fluctuation: | ≤±0.5ºC | Heating Time: | Rt Rises To 150ºC≤50 Minutes |
| Cooling Time: | +20ºC To -70ºC≤90 Minutes | Place Of Origin: | Dongguan China |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

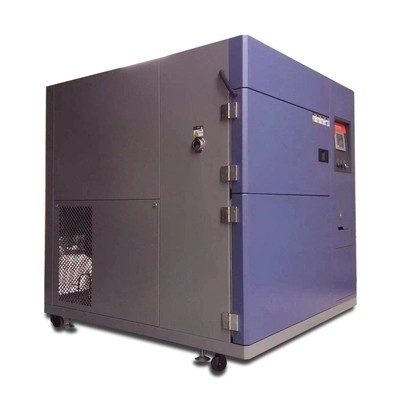

About 100L Two Chambers Thermal Shock Chamber Liquid Climatic Vibratory OEM
Product Features:
1. The product is beautiful in appearance, reasonable in structure, advanced in technology and exquisite in material selection, with simple and convenient operation performance and reliable equipment performance. The equipment is divided into three parts: high temperature box, low temperature box and test box. It adopts a unique thermal insulation structure and heat storage and cold storage effect. During the test, the object to be tested is completely still, and the cold and hot air are switched to the test area. To achieve the purpose of thermal shock test.
2. The most advanced measuring device is adopted, and the controller adopts a large-scale color LCD human-machine touch interactive LCD human-machine interface controller, which is easy to operate, easy to learn, stable and reliable, and displays the complete system operating status, execution in Chinese and English. and set the program curve.
3. With 96 test specifications independently set, the impact time is 999 hours and 59 minutes, and the cycle period can be set from 1 to 999 times. Time to start and stop work automatically;
4. There is a test hole with a diameter of 50mm on the left side of the box, which can be used for external power load wiring test components.
5. The function of three different conditions of high temperature, low temperature and hot and cold shock can be independently set, and when the cold and hot shock conditions are executed, the two-slot or three-slot type and the function of cold punching and hot punching can be selected. The function of high and low temperature testing machine.
6. Equipped with fully automatic, high-precision system loop, any mechanical action, fully P.L.C locking processing, all using P.I.D automatic calculation control, high temperature control accuracy.
Types of Humidity Systems:
There are various types of humidity systems used on test chambers today such as a water bath, boiler/steam
generator and atomizing system.
Water Pan - Very stable, but slow response
Boiler - Standard on most CSZ chambers. The advantages of this system are that it can attain 98%
humidity and has large capacity to work in any size unit. The disadvantages of this system is that live
load from boiler can cause problems at lower temperatures when the DUT generates heat.
Atomizer - This system sprays very fine drops of water into the air stream. The advantages of this system
are that it provides good control with live loads. CSZ typically uses this type of humidity systems for
devices under test that are over 500 watts, with the exception of larger chambers.
| Model | GSKA-40A |
| Effective volume | About 100L |
| Inner box size | W400mm×H500mm×D500mm |
| Test box outer box size | Approx. W1400mm×*H1950mm×D1750mm |
| Equipment condition | Ambient temperature is +25ºC |
| Temperature range | -70ºC to +200ºC |
| Temperature fluctuation | ≤±0.5ºC |
| Temperature shock range | -40°C to +150°C (high temperature 60°C to +150°C; low temperature -10°C to -40°C) |
| Temperature deviation | ≤±2ºC |
| Temperature uniformity | ≤2ºC |
| Temperature recovery time | -40 ºC to 150 ºC temperature overshoot time ≤ 5 minutes |
| Conversion time | ≤5S |
| High-temperature heating time | RT rises to 150ºC≤50 minutes, average nonlinearity in the whole process, no load |
| Low-temperature cooling time | +20ºC to -70ºC≤90 minutes, average nonlinearity in the whole process, no load |
| Heating and cooling overshoot | ≤±2ºC |
| Equipment noise | ≤70dB (A sound level, when constant, 1 meter in front of the device) |
| Outer box material | Plastic spray galvanized color steel plate |
| Inner box material | +SUS304# stainless steel plate |
| Insulation | Thick rigid polyurethane foam and glass fiber insulation layer |
| Box door | Single door and one type left open |
| Box fixed | Standard configuration with fixtures or casters for moving the box / for fixing the box |
| Test hole | According to customer requirements: ф50 (with soft anti-aging rubber stopper) |
| Seal | Original imported silicone seal |
| Pressure balance port | 1/2 inch drain shared type |
| Equipment drain | Standard 1/2 inner tank condensate water and unit residual water drain |
| Safety protection device | Test article over-temperature protection (independent) |
| With fuseless protection switch | |
| Heater over-temperature protection switch | |
| Compressor overload overheating | |
| Compressor high and low-pressure protection | |
| System overcurrent protection device | |
| The controller self-diagnoses faults and displays |
Advantage:
Ø 35 years experiences
Ø 24 hours online
Ø OEM,ODM
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
