Product Details:
|
| Temperature Recovery Time: | Less Than 5min | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

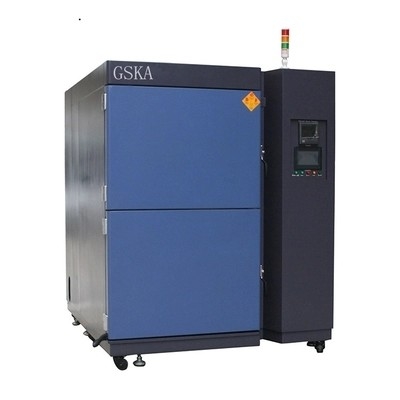

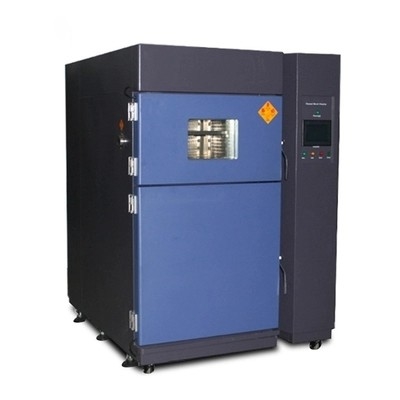

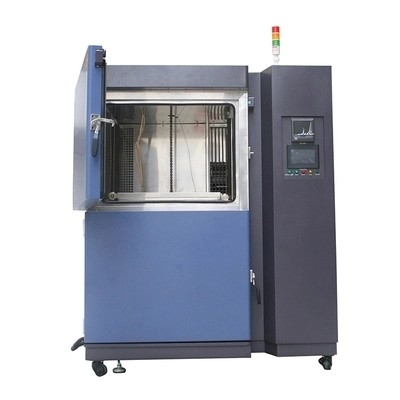

High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power
Application:
For electrical, electronics and machine parts to cold test, the temperature gradient through rapid changes in conditions or the suitability test. Especially suitable for electrical and electronic products, environmental stress screening options (ESS) test.
Thermal shock test chambers are used for “temperature shocking” a product under test. Usually a Thermal Shock Chamber consists of two chambers, one hot and another cold, with a test basket (which contains the product being tested) which moves between the two chambers (or zones) – either horizontally for vertically, depending on the configuration of the thermal shock chamber. This equipment is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials
| Inner Size(mm) | 400×350×300 | 400×500×400 | 500×600×500 | 500×750×600 |
| Temperature Range | High temperature chamber:RT~+150°C Low temperature:RT~-60°C | |||
| Temperature Deviation | Less than ±2°C | |||
| Temperature Conversion Time | Less than 10S | |||
| Temperature Recovery Time | Less than 5min | |||
| Material |
External material: SUS#304 Stainless steel plate Internal material:SUS#304 Stainless steel plate |
|||
| Coolting System |
Water-cooled or air-cooled, Tecumseh compressor in France, Environment friendly refrigerant |
|||
| Controllor | Programmable temperature controllor imported from Japan | |||
| Temperature Sensor | PT 100 *3 | |||
| Setting Range |
TEMPERATURE : -100.00+200.00°C / TIME : OH1M ~ 9999H 59M / CYCLE ~ 10000 CYCLE |
|||
| Resolution | TEMPERATURE : 0.01°C / TIME : 1 MIN | |||
| Output Mode | PID + PWM + SSR CONTROL METHOD | |||
| Simulated Load IC (KG) | 3.5kg | |||
| Standard Accessories | Cable hole, lighting equipment | |||
| Cooling System | Water-cooled/air-filled type | |||
| Power | AC380V/50HZ Three-phase four-wire ac power | |||
| Additional Features |
The outlet and return it checks for taste known control /CM BUS (RS-485) remote monitoring management system /Ln2 liquid nitrogen rapid cooling control device |
|||
| Remarks |
It can be customiazed according to customer demands. Technology index refer to product description.Delivery time within 45days. |
|||
Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
5 Free technical training for visiting factories
6 24-hour Online contact
7 Free software upgrades
More produced:
Temperature Humidity Test Chamber
Walk-in Aging Chamber
Environmental Test Chambers
Thermal Shock Chamber
Fast Temp. Change Test Chamber
Vibration Shaker
Environmental Vibration Chamber
Mechanical Shock Tester
UV Chamber
Xenon Chamber
We offer standard and custom-designed environmental test chambers to meet our customer’s requirements. with our environmental test chambers, you can simulate a diverse range of environmental conditions to test your products. We specialize in providing solutions for extreme temperatures combined with humidity, altitude or vibration.
