Product Details:
|
| Material: | SUS 304# Stainless Steel | Humidity Range: | 20%~98%R.H.(10%~98%R.H/ 5%~98%R.H) |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Thermal Cycle Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| OemChamber Materials: | YesSUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

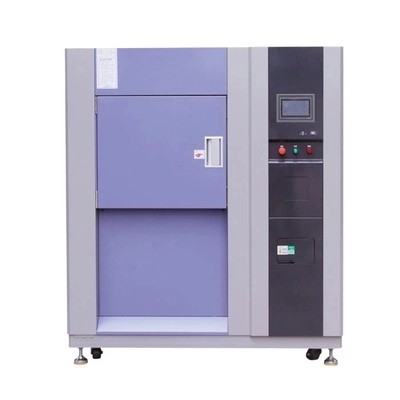

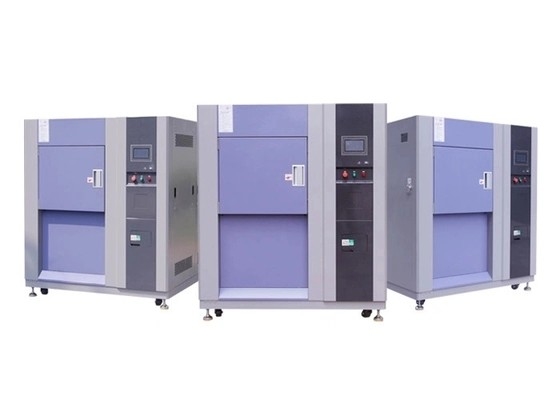

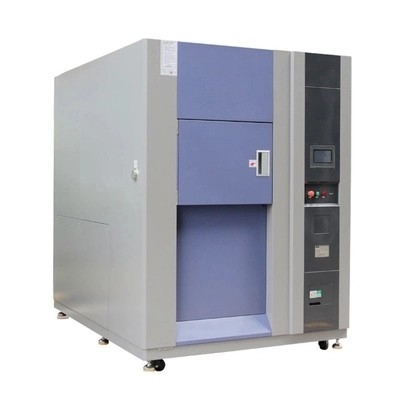

AC 220V Environmental Thermal Cycle Test Chamber Anticorrosive Rainproof
General description:
Thermal shock test chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics and other materials can be used as a basis to improve their products or reference.
Special features:
1. Precision LCD touch panel controller, can display Chinese / English.
2. High formula memory capacity can be set to 120 patterns. The maximum cycle setting is 9999 times. The maximum setting time of each pattern is 9999 hours 59 minutes.
3. Equipped with RS-485C communication interface port, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
4. Both 2 zone and 3 zone chambers can be chosen. The inner chamber size can be customized as per your request.
5. All systems are fully automatic, and all process are precisely controlled with P.LC' s.
6. If any parts have errors, the machine will automatically shuts down and a warning light switches on.
7. Thermal shock test chamber can be shut down automatically in case of electrical power failure.
Applicable industries:
Industrial Three Boxes Temperature Stability Thermal Shock Tester For PCB Substrate applied to aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civiliannuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, and technical supervision departments; building materials ceramic; petroleum and chemical products, For high and low temperature impact test.
Corresponding standard:
1. GB/T2423.1-1989 low-temperature testing method
2. GB/T2423.2-1989 high-temperature testing method
3. GB/T2423.22-1989 temperature test
4. GJB150.5-86 temperature impact test
5. GJB360.7-87 temperature impact test
6. GJB367.2-87 405 temperature impact test
Specification:
| Model | GSKA-80 (A~F) |
GSKA-150L (A~F) |
GSKA-225L (A~F) |
GSKA-408L (A~F) |
GSKA-800L (A~F) |
GSKA-1000L (A~F) |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃) | |||||
| Humidity range | 20%~98% R.H | |||||
| Temp analytic accuracy/ uniformity |
0.1℃/±2.0℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Humidity control accuracy | ±0.1%;±2.5% | |||||
| Heat, cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system |
Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
|||||
| Protection devices |
Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
|||||
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4, Foot Cupx4 | |||||
| Compressor | Original France“Tecumseh”brand | |||||
| Controller | Taiwan, Independent R&D software | |||||
| Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 | |||||
| Weight (kg) | 170 | 220 | 270 | 320 | 450 | 580 |
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
