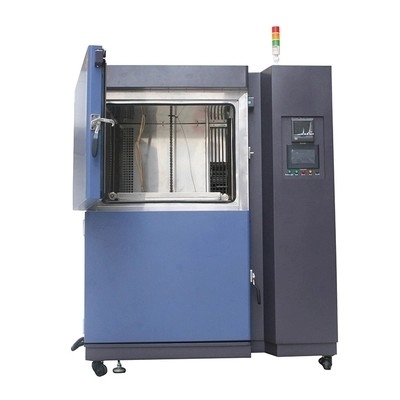

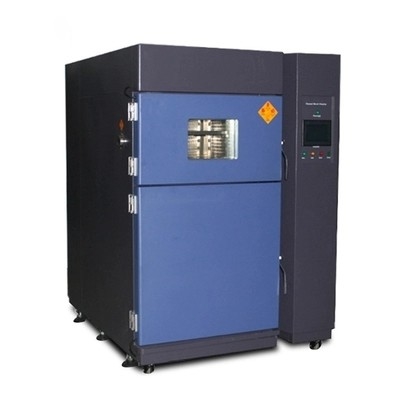

High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power

High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power
High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power

Large Image :  High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power

Product Details:
Place of Origin: China
Brand Name: GSKA
Certification: CE
Model Number: Model Number
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power

Description
Temperature Recovery Time: Less Than 5min Temperature Fluctuation: ±1.0℃
Customized Support: OEM Condenser: Water-cooled Condensing Agent
Impact Recovery Time: (-40)℃~(+150)℃≤5min Temperature Uniformity: ±2.0℃
Power: 220V , 50Hz Keyword: Thermal Shock Chamber
High Light:

Temperature Test Chamber

,

Climate Test Chamber

High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power



Application:



For electrical, electronics and machine parts to cold test, the temperature gradient through rapid changes in conditions or the suitability test. Especially suitable for electrical and electronic products, environmental stress screening options (ESS) test.



Thermal shock test chambers are used for “temperature shocking” a product under test. Usually a Thermal Shock Chamber consists of two chambers, one hot and another cold, with a test basket (which contains the product being tested) which moves between the two chambers (or zones) – either horizontally for vertically, depending on the configuration of the thermal shock chamber. This equipment is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials


Inner Size(mm) 400×350×300 400×500×400 500×600×500 500×750×600
Temperature Range High temperature chamber:RT~+150°C Low temperature:RT~-60°C
Temperature Deviation Less than ±2°C
Temperature Conversion Time Less than 10S
Temperature Recovery Time Less than 5min
Material

External material: SUS#304 Stainless steel plate

Internal material:SUS#304 Stainless steel plate

Coolting System

Water-cooled or air-cooled,

Tecumseh compressor in France,

Environment friendly refrigerant

Controllor Programmable temperature controllor imported from Japan
Temperature Sensor PT 100 *3
Setting Range

TEMPERATURE : -100.00+200.00°C

/ TIME : OH1M ~ 9999H 59M

/ CYCLE ~ 10000 CYCLE

Resolution TEMPERATURE : 0.01°C / TIME : 1 MIN
Output Mode PID + PWM + SSR CONTROL METHOD
Simulated Load IC (KG) 3.5kg
Standard Accessories Cable hole, lighting equipment
Cooling System Water-cooled/air-filled type
Power AC380V/50HZ Three-phase four-wire ac power
Additional Features

The outlet and return it checks for taste known control

/CM BUS (RS-485) remote monitoring management system

/Ln2 liquid nitrogen rapid cooling control device

Remarks

It can be customiazed according to customer demands.

Technology index refer to product description.Delivery time within 45days.



High Low Temperature Impact Thermal Shock Test Chamber 220V 50Hz Power 0



Service:


1. Device installation;


2. Equipment Operation Test Technology training;


3. Equipment Calibration;


4. Daily maintenance and maintenance of equipment


5 Free technical training for visiting factories


6 24-hour Online contact


7 Free software upgrades



More produced:



Temperature Humidity Test Chamber


Walk-in Aging Chamber


Environmental Test Chambers


Thermal Shock Chamber


Fast Temp. Change Test Chamber


Vibration Shaker


Environmental Vibration Chamber


Mechanical Shock Tester


UV Chamber


Xenon Chamber

We offer standard and custom-designed environmental test chambers to meet our customer’s requirements. with our environmental test chambers, you can simulate a diverse range of environmental conditions to test your products. We specialize in providing solutions for extreme temperatures combined with humidity, altitude or vibration.
