Product Details:
|
| Application: | Industry, School, Lab | Material: | Stainless Steel |
|---|---|---|---|
| Function: | High Temperature Drying | Warrant: | 1 Year |
| Certification: | CE, ISO, RoHS | Type: | Drying Oven |
| Transport Package: | Standard Export Wooden Case | Power: | 220V,50Hz Or As The Requirement |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

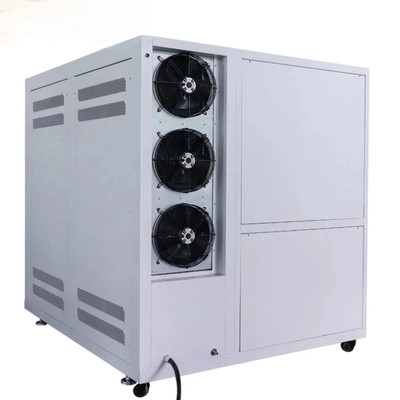

Battery Test Thermal Shock Chamber Automatic High Temperature

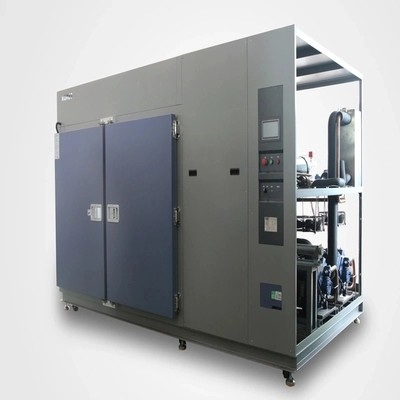

Structure of hot and cold shock test chamber:
1, the test box structure: the test box adopts the whole combination structure, the test box is located in the upper part of the high temperature test box, the low temperature test box is located in the lower part, the refrigerating unit cabinet is located in the rear and the electrical control cabinet (system) is located on the left rear plate. This way the box occupies the air volume is small, the structure is compact, the appearance is beautiful, the refrigeration unit is placed in the independent unit box, in order to reduce the vibration and noise of the refrigeration unit operation on the test box, at the same time to facilitate the unit's device and maintenance, the electrical control panel is placed on the left side of the test box plate for easy operation.
2, the outer wall of the box material: ** carbon steel plate, the appearance of electrostatic color plastic spraying disposal.
3, high and low temperature impact test box insulation material: ** ultrafine glass fiber cotton.
4, box wall material: imported SUS304 stainless steel plate, corrosion resistance, easy to clean.
5, the laboratory lighting installation: moisture-proof lamp.
6. Observation window: open a 350×250mm electrothermal coating moisture-proof and temperature-proof observation window on the upper box (high temperature box) door.
7, high and low temperature impact test box sample frame: move up and down the stainless steel sample frame slide guide. The dual-acting cylinder is used to provide smooth and average power, and the sample frame is positioned and mounted by the indirect electrical sensor produced by FESTO Company in Germany.
8. Cable threading hole: a sliding cable threading pipe is arranged on the upper part of the sample frame and the top of the high temperature test box.
9. Bearing capacity of sample frame: ≥30Kg.
Specifications:
| Model | GSKA-3020-A | GSKA-3020-B | GSKA-3020-C |
| Working space(W×D×H) | 40x40x45 (cm) | 50x50x60 (cm) | 60x60x60 (cm) |
| Weight | 87kg | 90kg | 150kg |
| Power | 220V,15A | 220V,19.5A | 220V,26A |
| Electric heat | 3 KW | 4 KW | 5 KW |
| Temperature range | RT~200ºC or 300ºC | ||
| Heat preservation material | Compression glass wool | ||
| Heat preservation device | Non-fuse switch; over temperature protection switch; ceramic fuse. | ||
| Over-temperature protection device | Alarm for the first over-temperature; Power cut for the second over-temperature; MCCB overload protection. | ||
| Sample plate rotation speed | 5-10 rpm | ||
| Temperature fluctuation | ≤±0.5ºC | ||
| Temperature uniformity | ≤±2ºC | ||
| Inner box material | Stainless steel | ||
| Outside box material | Steel plate with paint | ||
| Horse power | 1/4 HP | ||
Advantage:
1. 35 years experiences
2. 24 hours online
3. OEM,ODM
4. Sample chamber of each model
5. Best price, fast delivery
6. Oversea offices
7. Own import and export business license
8. ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
