Product Details:
|
Viewing Window: | The Transparent Electro Thermal Hollow Toughened Glass | Heat Up Rate: | About 3℃~5℃/min; Can Be Custom |
---|---|---|---|
Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
Keyword: | Walk In Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
Brand: | GSKA | Interior Material: | SUS#304 Stainless Steel |
High Light: | Temperature Test Chamber,Climate Test Chamber |

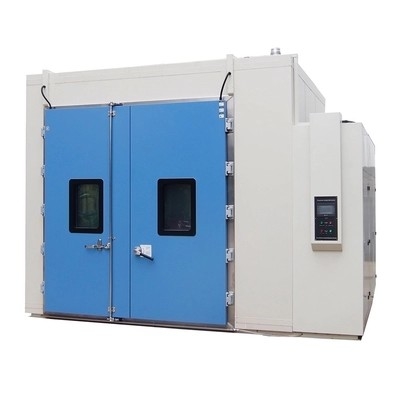

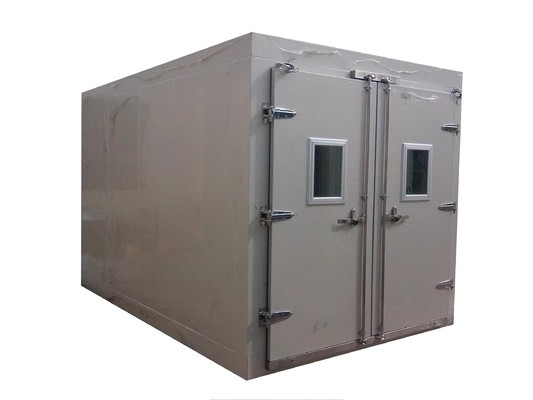

Sturdy 60Hz Walk In Thermal Chamber , Temperature Humidity Controlled Cabinets
Walk In Environmental Chamber
These walk-in chambers have an assembled structure and can be installed and debugged on site. The cavity has a large volume and can be used to simulate single or complex environmental factors in the atmosphere, such as temperature, humidity, salt spray, light, dust, rain, and vibration.
Thermal cyclic chamber
chamber with internal air circulation, and all the heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space
Corresponding Standard:
1. IEC60068-2-1.1990 Low Temperature testing method
2. IEC60068-2-2.1974 High-temperature testing methods
3. GJB150.3 High Temperature testing method
4. GJB150.4 Low temperature testing method
5. GB11158 Technical conditions for high-temperature testing box
6. GB10589-89 Technical conditions for Low temperature testing box
7. GB/T2423.1-2001 Low temperature testing methods
8. GB/T2423.2-2001 High-temperature testing methods
9. GB/T2423.22-2001 Temperature testing method
10. GB10592-89 Technical conditions for high and low temperature testing box
Specifications :
Inner chamber size w×h×d(cm) | Non-standard,depends on customers` specific requirements for customization | |||||
Exterior chamber size w×h×d(cm) | ||||||
Testing temperature range | 0℃,-20℃,-40℃,-60℃,+70℃,+80℃ | |||||
Performance | Temp.fluctuation | ±0.3℃ | ||||
humidity range | 30~90%RH | |||||
Humidity uniformity | ±5℃%RH | |||||
Temp.uniformity | ±3℃ | |||||
Heat up time | 20℃~80℃≤50min | |||||
Material | Exterior chamber material | Cold-rolled steel+Powder coating | ||||
Interior chamber material | SUS#304 Stainless steel plate | |||||
Insulation material | PU fiberglass wool | |||||
System | Air circulation system | Cooling fan | ||||
Heating system | SUS#Stainless steel high-speed heater | |||||
Humidification system | Surface evaporation system | |||||
Controlling system | Digital electronic indicator+SSR+PID | |||||
Refrigeration system |
Imported tecumseh compressor+ fin type evaporator+air(water)condenser |
|||||
Dehumidifying system | ADP dew point dehumidification method | |||||
Other components | Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | |||||
Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp | |||||
Power supply | AC 3phase 380V 60/50Hz | |||||
Customization service | Non-standard or special requirements are all welcome |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Our advantages:
1) Direct factory with 10+ years manufacturing experience in test equipment.
2) Products are in accordance with ASTM, IEC, ISO, JIS and other international standard.
3) Overseas technical and onsite installation support, have been 8 countries, such as America, Turkey, Australia etc.
4) Professional R&D staff with more than 5 years experience in this filed.
