Product Details:
|
| Preheating Temperature: | 60.00°C~200.00°C | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Application: | Electrics |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

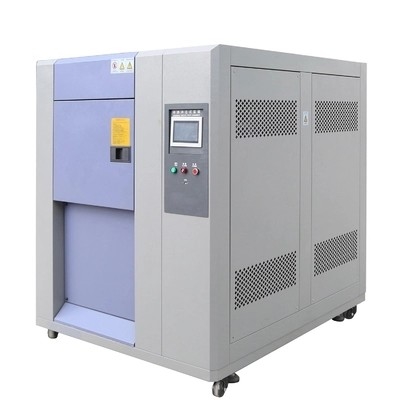

380V 50HZ Temperature Cycling Thermal Shock Chamber 22L-505L Rustproof
Purpose:
It is necessary test equipment for the aerospace, automotive, home appliances, research and other fields, used for examination and identification of parameters, performance and the use of adaptive of electrical, electronics, automotive electronics, materials and other products, after making high and low temperature impact test. Applied to schools, factories, military, research, and other organizations
Features:
1. Perfect appearance and easy to operate.
2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

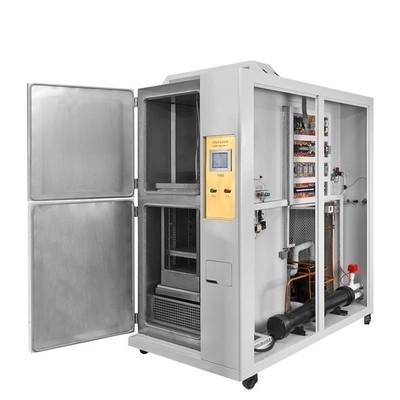

3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water.
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
6. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
7. With RS-232C communication port for connecting PC to control, record and save test report.
| Name | Thermal Shock Chamber | |||
| Model | GSKA-162 | GSKA-340 | GSKA-500 | GSKA-1000 |
| Inner dimensions of test room | 300*300*250mm | 450*450*360mm | 650*650*500mm | 850*850*700mm |
| Volume of test room | 22L | 72L | 211L | 505L |
| Load of test room | 20kg | 30kg | 50kg | 60kg |
| Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | |||
| Lower limit pre-cool temperature | -75℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | |||
| High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | |||
| Recovery time | Within 15 minutes | |||
| Temperature fluctuation | ≤±0.5℃ | |||
| Temperature deviation | ≤±3 ℃ | |||
| Controller | Programmable color LCD touch screen controller | |||
| Cooling system | Mechanical compression refrigeration system | |||
| Exterior material | Steel Plate with protective coating | |||
| Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing | |||
| Power Supply | 380V 50HZ | |||
Ways of service:
● Solve the problems in using the test chambers timely and Effectively
● Response within 6 hours once got questions from customers.
● Engineers available to service machines overseas to install and commissioning
● Training how to install, operate and maintain the machine
● On-site diagnosis and repair / Online diagnosis and repair
● Business Negotiations
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
