Product Details:
|
| Low Temperature Exposure Range: | –65 To -5°C | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Application: | Electrics |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

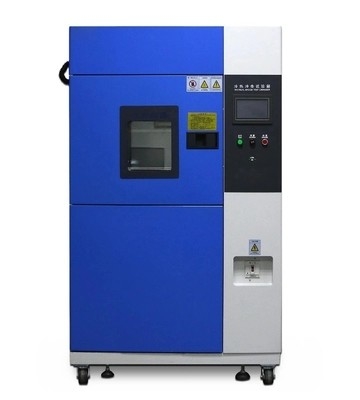

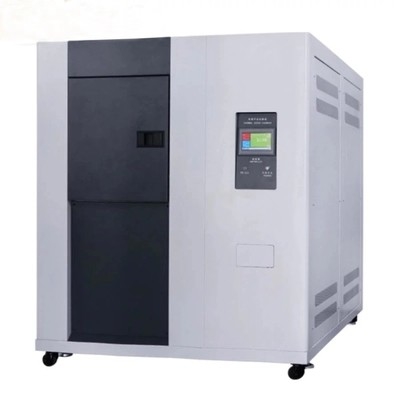

Thermostatic Vacuum Thermal Shock Chamber 3 Zone Programmable
Advantage of Thermal Shock Test Chamber|:
1. Aluminum piece of refrigeration,Faster cooling rate
2.2pcs shelf,Height can be adjustable; Can be remove
3.Cable hole:supply power to workroom's specimen, to better finish testing
Features:
1. Perfect appearance and easy to operate.
2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
Specifications of Thermal Shock Test Chamber:
| Internal dimensions(mm) | 500*500*400 | 700*600*500 | 700*780*550 | ||
| Overall dimensions(mm) | 1150*1950*2100 | 1350*2100*2200 | 1350*2250*2300 | ||
| Sample Loads | 10kg | 15kg | 25kg | ||
| Pre-heat room | Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | ||||
Pre-cool room |
Lower limit pre-cool temperature | -70℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | ||||
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | ||||
| Recovery time | Within 15 minutes | ||||
| Temperature fluctuation | ≤±0.5℃ | ||||
| Temperature deviation | ≤±3℃ | ||||
| Controller | Programmable color LCD touch screen controller | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Refrigerating unit | French TECUMSEH compressor | ||||
| Refrigerant | R404A, R23 | ||||
| Exterior material | Steel Plate with protective coating | ||||
| Interior material | SUS304 stainless steel | ||||
| Observation window | Interior lighting | ||||
| Standard configuration | 2 pieces of stainless steel shelves, Φ 50 round cable port | ||||
| Power Supply | 380V 50HZ | ||||
| Environmental conditional | 5℃～+40 ℃ ≤85% RH | ||||
Ways of service:
● Solve the problems in using the test chambers timely and Effectively
● Response within 6 hours once got questions from customers.
● Engineers available to service machines overseas to install and commissioning
● Training how to install, operate and maintain the machine
● On-site diagnosis and repair / Online diagnosis and repair
● Business Negotiations
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
1. Installation
2. Training (Training customer employees)
3. Calibration
4. Preventative maintenance
5. Replacement parts
6. Assistance via phone or internet
7. On-site diagnosis and repair/online diagnosis and repair
