Product Details:
|
| External Material: | Antirust Processing Cold-rolled Steel Sheet | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||
ROHS Rustproof Environmental Test Chamber Humidity Control Anti Explosive
Programmable Controller:
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output

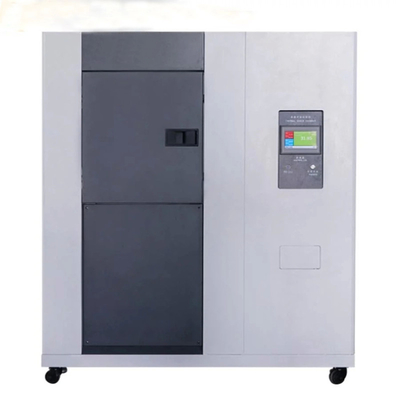

The three-box cold and thermal shock test chamber is designed and manufactured according to user requirements. It is suitable for high and low temperature impact test of complete machines and parts of aviation, aerospace, military, naval, electrical, electronic and other products and storage in high temperature or low temperature environment. and test. It is for users to carry out corresponding climatic and environmental accelerated tests on the whole machine (or components), electrical appliances, instruments, materials, coatings, coatings, etc., so as to evaluate the test sample or the test behavior of the test sample.
Chamber Design Features:
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
| Test method | High/ Low temperature chamber/ Test Area (Three zone) |
| Inner dimension (W*D*H) | 350*350*400mm |
| External dimension (W*D*H) | 1230*1270*1830mm |
| Setting Temperature range | -40 ~ +150C |
| Pre-heating chamber temperature range | +60 ~ 165℃ |
| Pre-cooling chamber temperature range | -10 ~ -60℃ |
| Temperature fluctuation | ±1℃ |
| Thermal recovery time | Within 5 minutes |
| External material | Antirust processing cold-rolled steel sheet |
| Internal material | SUS#304 stainless steel |
| Thermal insulation material | Polyurethane foam and fiberglass |
| Coolant | R404A / R23 |
| Cooling method | Air / Water cooling |
| Power supply | Three phase, 380V, 50Hz |
Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
5 Free technical training for visiting factories
6 24-hour Online contact
7 Free software upgrades
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
More produced:
Temperature Humidity Test Chamber
Walk-in Aging Chamber
Environmental Test Chambers
Thermal Shock Chamber
Fast Temp. Change Test Chamber
Vibration Shaker
Environmental Vibration Chamber
