Product Details:
|
| Customized Support: | OEM | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Application: | Electrics |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

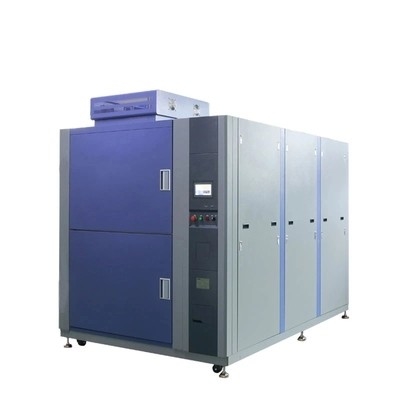

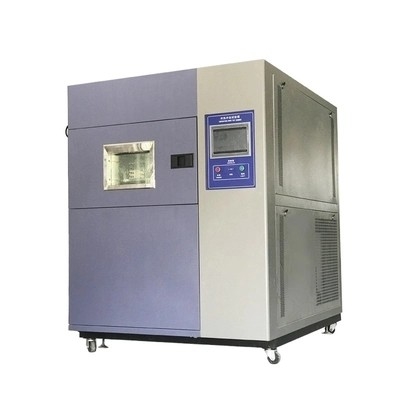

220V LCD Cycle Thermal Shock Chamber Explosion Proof Durable OEM
Mechanical sheet metal structure:
All functions are controlled by computer, it is self-developed software, and has a good operation interface, which makes the user's operation and monitoring more simple and intuitive. You can set the time and parameters on the screen to switch between cooling, heating, and blue transfer, and press the set button. The setting is performed automatically.
The cold box and the hot box are independently controlled, and the box doors are independent of each other, which expands the use range of the test box (one box for three purposes).
The thermal insulation effect of the product can be fully guaranteed.
The door of the test chamber is interlocked with the circulating fan and the blue drive to protect the safety of the operator. Once the door is opened, the power supply of the circulating fan and the blue drive will be automatically cut off.
There is a standard lead hole tube on the top of the box, which is convenient for users to introduce sensor lines, detection cables and other types of leads into the box.
| Name | Thermal Shock Chamber | |||
| Model | GSKA-162 | GSKA-340 | GSKA-500 | GSKA-1000 |
| Inner dimensions of test room | 300*300*250mm | 450*450*360mm | 650*650*500mm | 850*850*700mm |
| Volume of test room | 22L | 72L | 211L | 505L |
| Load of test room | 20kg | 30kg | 50kg | 60kg |
| Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | |||
| Lower limit pre-cool temperature | -75℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | |||
| High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | |||
| Recovery time | Within 15 minutes | |||
| Temperature fluctuation | ≤±0.5℃ | |||
| Temperature deviation | ≤±3 ℃ | |||
| Controller | Programmable color LCD touch screen controller | |||
| Cooling system | Mechanical compression refrigeration system | |||
| Exterior material | Steel Plate with protective coating | |||
| Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing | |||
| Power Supply | 380V 50HZ | |||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Ways of service:
● Solve the problems in using the test chambers timely and Effectively
● Response within 6 hours once got questions from customers.
● Engineers available to service machines overseas to install and commissioning
● Training how to install, operate and maintain the machine
● On-site diagnosis and repair / Online diagnosis and repair
● Business Negotiations
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
