Product Details:
|
| Key Word: | Thermal Shock Chamber | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Application: | Electrics |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

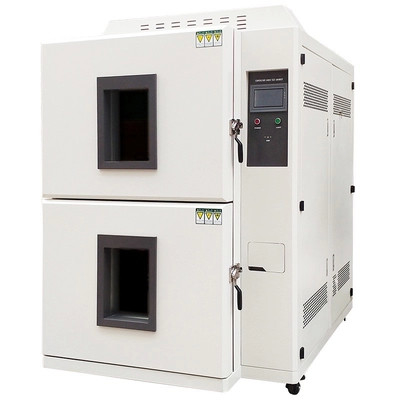

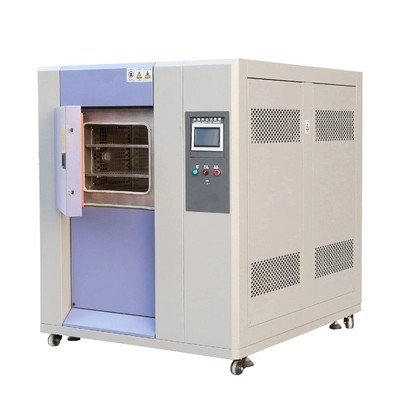

OEM Temperature Thermal Shock Chamber Rustproof Anti Explosive
The scientific name of high and low temperature environmental test box "high and low temperature test box" refers to a test box that simulates the natural environment. It mainly tests whether the product is resistant to high and low temperature. To test and determine the parameters and performance of electrical, electronic and other products and materials subjected to high temperature, low temperature, or constant temperature environment changes.
| Working Chamber Volume(L) | 225 | 408 | 800 | 1000 |
| TempRateof | 3-20ºC/Min | |||
| Change( ºC/Min) | ||||
| Performance | -70ºC~+100ºC | |||
| Rapid Temp Change -55ºC~+85ºC Full Linear Control | ||||
| Humidity | ±0.5ºC | |||
| Temp | ±3.0ºC | |||
| Exterior | Cold-rolled steel sheet (Rust proof & Plastic Spray treated ) Stainless Steel | |||
| Interior | Stainless Steel Plate(SUS 304) | |||
| Insulation | Rigid Polyurethane Foam | |||
| Safety devices | Over pressure,over heat and over current protection for compressor,over temp.Protection, | |||
| Compress | Semi-Hermetic Compressor | |||
| Cooling | Water Cooled | |||
| Control | Balanced Temperature & Humidity Control System(BTC type) | |||
| Heater | Iron-chrome wire heater | |||
| Blower | Centrifugal Blower | |||
| Observatio | Glass incorporating heat generator | |||
| Temp | Pt-100 | |||
| Controller | Touch screen programmable controller | |||
| Ambient | +5ºC~+35ºC | |||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | |||
| Customers Support Services |
1. Installation; 8. Lifelong maintenance. |
|||
| Note:1.We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available | ||||
Types of Humidity Systems
There are various types of humidity systems used on test chambers today such as a water bath, boiler/steam
generator and atomizing system.
Water Pan - Very stable, but slow response
Boiler - Standard on most CSZ chambers. The advantages of this system are that it can attain 98%
humidity and has large capacity to work in any size unit. The disadvantages of this system is that live
load from boiler can cause problems at lower temperatures when the DUT generates heat.
Atomizer - This system sprays very fine drops of water into the air stream. The advantages of this system
are that it provides good control with live loads. CSZ typically uses this type of humidity systems for
devices under test that are over 500 watts, with the exception of larger chambers.
Application :
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test (ESS)
Environmental stress screening (ESS) refers to the process of exposing a newly manufactured or repaired product or component (typically electronic) to stresses such as thermal cycling and vibration in order to force latent defects to manifest themselves by permanent or catastrophic failure during the screening process. The surviving population, upon completion of screening, can be assumed to have a higher reliability than a similar unscreened population.
ESS can be performed as part of the manufacturing process or it can be used in new product qualification testing.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
5 Free technical training for visiting factories
6 24-hour Online contact
