Product Details:
|
| Cooling System: | Water-cooled Or Air-cooled | Humidity Range: | 20%~98%R.H.(10%~98%R.H/ 5%~98%R.H) |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Thermal Cycle Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

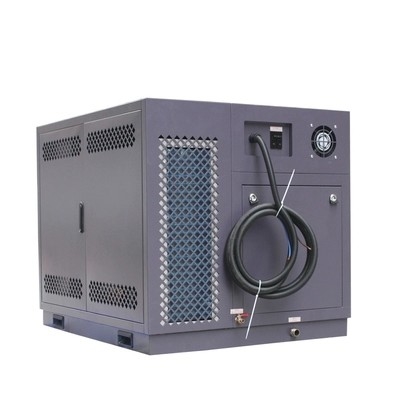

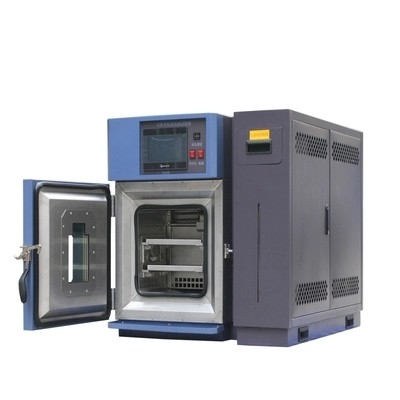

Anticorrosive ODM Test Thermal Shock Chamber Waterproof Durable
What is thermal shock:
High Accuracy Shock Thermal Air Test Chamber, Shock Thermal Tester is divided into high temperature area, low temperature area and test area three parts, each area is a unique insulation structure, so doing hot and cold impact test. High-temperature impact test or low-temperature impact test, the maximum time is up to 9999 minutes, the most cycle time is up to 9999 times. The machine can be automatically or manually cycle the impact or selectively set the two areas or three areas to impact of hot and cold. It used binary cooling system that is very effectiveness for cooling, the cooling system is divided into the air-cooled and water-cooled. It also can be connected with a computer, but the record instrument is only for optional purchase.
Applications:
Battery
Vehicles
Chemical
Aerospace
Metal Parts
Electronics
Car Spare Parts
Building Materials
Communication Equipment
Features:
1. Highly accurate temperature recovery
2.1000 cycles continuous operation (option: defrost-free operation)
3. Accurate and dependable test result (option: product temperature control*)
4. Monitoring product temperature (option: product temperature monitor with trigger function)
5. patent parallel refrigeration system improves reliability
6. Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode
Specification:
| Model | GSKA-80L (A~F) |
GSKA-150L (A~F) |
GSKA-225L (A~F) |
GSKA-408L (A~F) |
GSKA-800L (A~F) |
GSKA-1000L (A~F) |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃) | |||||
| Humidity range | 20%~98% R.H | |||||
| Temp analytic accuracy/ uniformity |
0.1℃/±2.0℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Humidity control accuracy | ±0.1%;±2.5% | |||||
| Heat, cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system |
Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
|||||
| Protection devices |
Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
|||||
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4, Foot Cupx4 | |||||
| Compressor | Original France“Tecumseh”brand | |||||
| Controller | Taiwan, Independent R&D software | |||||
| Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 | |||||
| Weight (kg) | 170 | 220 | 270 | 320 | 450 | 580 |
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
EIA - 364-31C temp resistance GB/T2423.3 constant heat test method
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM, ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
