Product Details:
|
| Humidity Fluctuation: | ±3%RH | Humidity Range: | 20%~98%R.H.(10%~98%R.H/ 5%~98%R.H) |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Thermal Cycle Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

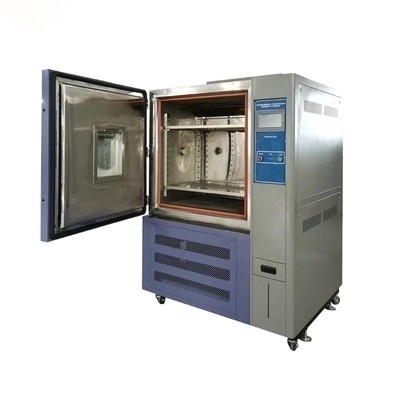

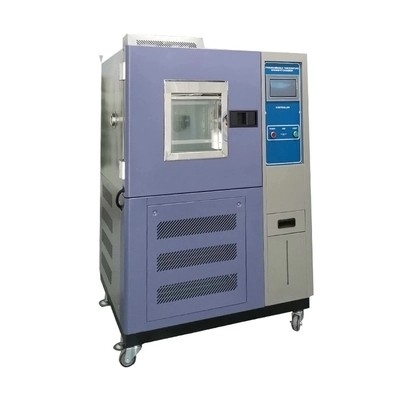

Ambient 5°C~35°C Temperature Thermal Cycle Test Chamber AC 380V Rustproof
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
EIA - 364-31C temp resistance GB/T2423.3 constant heat test method
Features:
1. Highly accurate temperature recovery
2.1000 cycles continuous operation (option: defrost-free operation)
3. Accurate and dependable test result (option: product temperature control*)
4. Monitoring product temperature (option: product temperature monitor with trigger function)
5. patent parallel refrigeration system improves reliability
6. Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode
7. Minimizing defrosting burden with defrost-free operation (option: defrost-free operation)
8. Parallel refrigerator control system for energy-saving control
Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Circulated cooling water: pressure: 0.2~0.4MPa, temperature: ≤30℃
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
Product Specifications:
| temp. range | -70°C~100°C | |||||
| Temp. flucturation | ±0.5℃ | |||||
| Temp. deviation | ±3℃ | |||||
|
Internal dimension
(CM)
|
W40 | W40 | W50 | W50 | W60 | W100 |
| H50 | H50 | H60 | H75 | H85 | H100 | |
| D45 | D50 | D50 | D60 | D80 | D80 | |
| Test weight (KG) | 5, 10,15 | 5, 10, 15 | 5, 10, 15 | 5, 10, 15 | 5, 10, 15 | 5, 10, 15 |
| Interior material | Stainless steel 304 | |||||
| Exterior material | Backed paiting steel or stainless steel(SUS304) | |||||
| Insulation material | Rigid polyruethane foam +glass fibre | |||||
| Cooling system | 1. Water cooled or liquid nitrogen cooled.
2. Semitight compressor, CFC free refrigerant
|
|||||
| Heater | High quality nicklel chrome heater | |||||
| Blower | Centrifugal fan | |||||
| Controller | Color LCD screen in English/Chinese, programing,communicating function | |||||
| Safety devices | No welding wire switch, compressor overheating and over current protection, over temperature protection, blower overload protection, dry heating machine protector,low water protection, fault warning system. | |||||
| Standard accessories | one test hole(diam5cm), two sets of test racks, four moving wheels, 2 meters of power cord, communication interface. | |||||
| Ambient | 5°C~35°C | |||||
| Power | AC380V±10% 50HZ 3 phase 4 wires+ground wires | |||||
Uses:
This product is used to provide large parts industry,semi-finished products of the large temperature and humidity test environment equipment.
Character:
Content product can be any enlargement,reduction,designed with the needs of the user environment.
Modualar library board,easy accessibility,simple structure with a zero coefficient of ozone green(HFC)refrigerants R404,R23.Spacious,bright and large windows proof room with high brightness,so that users can observe the walk-in constant temperature and humidity conditions indoors laboratory testers.A full range of security devices and power memory to ensure the safety of users using the machine itself and blow ceiling type,reduce testing indoor sample of wind speed on the sample able to do low-speed high uniformity requirements.It can be connected to the computer,the recorder.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
