Product Details:
|
| Temperature Range: | -40degree To 150degree | Viewing Window: | The Transparent Electro Thermal Hollow Toughened Glass |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Humidity Cycling Walk In Test Chamber | Heat Up Rate: | About 3℃~5℃/min； Can Be Custom |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

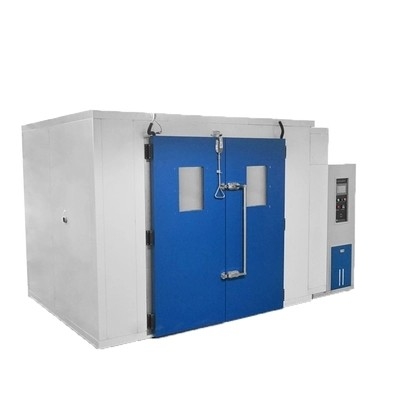

Siemens Controller Walk In Humidity Chamber 380vac±10% 50/60hz
Enter type characteristics:
1, walk-in laboratory test case base using 8 # channel steel welding net type structure, the bearing capacity is strong, can avoid the bottom concave and convex and cracking phenomenon,
2, large double open the door and small slope design convenient bulk products and cart in and out of the laboratory, equipped with large view window and multiple sets of indoor LED explosion-proof lamps, convenient observation products.
3, walk-in laboratory wall is made of stainless steel, outside Box adopts high quality color steel plate, insulation medium for rigid polyurethane foam, walk-in laboratory has many characteristics, such as light and heat insulation effect is good.
4, walk-in laboratory USES positive pressure type ceiling supply air circulation system, high temperature uniformity and stability.
5, open door shake handshandle of inside and outside, so that the test personnel from closed indoor free open the door.
Features:
1. Realize temperature constant value control and program control;
2. The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3. With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4. Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5. Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6. Customize size/customize indicators/customize various optional features
Introduction:
-40℃ to 150℃ walk in stability test chamber for temp / humidity cycling test give the maximum flexibility in both chamber size and performance for your most demanding temperature/humidity testing requirements. It allows manufacturer to simulate how their products will perform in climate conditions
Technical parameters:
| Model | GSKA-10028 |
| Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer requirements |
| Temperature range | -40℃~150℃ |
| Humidity range | 20%~98%R.H. |
| Accuracy/uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
| Accuracy/volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
| Cooling time | 5.0 °C /minute |
| Inside material | SUS#304 Stainless Steel |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |
| Cooling system | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| Accessories | recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller | German Siemens PLC or TH-900C Korea or TEMI |
| Compressor | France's Tecumseh Brand or Germany |
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
