Product Details:
|
| Model NO: | GSA-B47 | FeatureRated Replacement(Mmp-P): | 51mmp-P |
|---|---|---|---|
| Rated Acceleration Empty Load: | 980m/S2 (100g) | Max. Output(kVA): | 20kVA |
| Control: | Computer Control | Consumption Power(kVA): | 30kVA |
| Max. Testing Load(Kg): | 300kg | Cooling Way: | Air Cooling |
| High Light: | Vibration Tester,Electrodynamic Shaker |
||

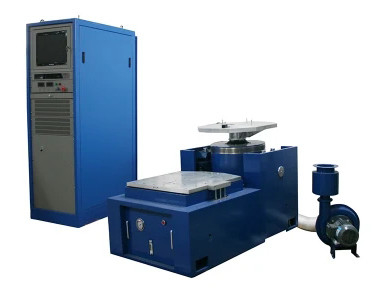

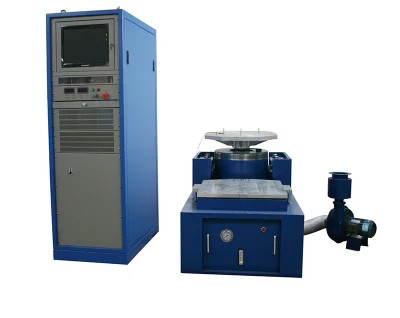

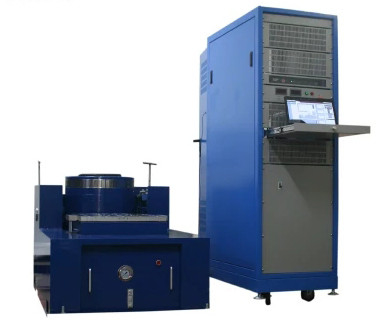

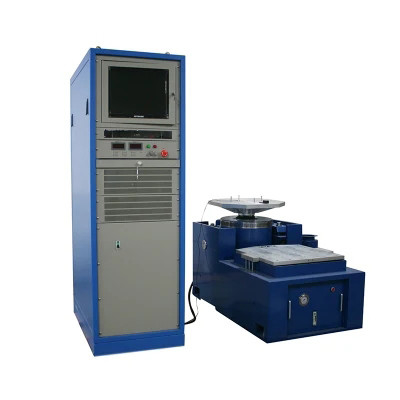

Horizontal Vibration Testing Machine Used For Laboratory Vibration Testing
product presentation:
Laboratory Horizontal Electromagnetic High Frequency Vibration Testing Machine is simulates the various vibrational effects encountered by the product in transportation, installation, and use environments to determine whether the product can withstand various environmental vibrations. It is widely used in defense, military, aviation, shipbuilding, optoelectronics, instrumentation, electronics, automobiles, research institutes, testing institutions and other industries.
Features:
1. The base of the machine is made of high-quality materials, easy to install and run smoothly.
2. There are many functions such as frequency modulation, frequency sweeping, programmable amplitude modulation, time control, etc.
3. Strong anti-magnetic and anti-interference ability; safe and reliable protection.
4. Computer connecting line control, immediately store materials.
5. Low resistance and high performance design, high efficiency, low cost.
6. High reliability, low fault. 6 Best after sales service: One year free parts maintenance.
7. Customization is available & welcomed.
Technical specifications:
| Model | GSA-B47 | GSA-B48 | GSA-B49 | GSA-B50 | GSA-B51 |
| Rated sine force(N) | 2940N | 5880N | 9800N | 19600N | 29400N |
| Rated frequency range(Hz) | 5Hz~4000Hz | 5Hz~3000Hz | 5Hz~3000Hz | 5Hz~3000Hz | 5Hz~2500Hz |
| Rated acceleration Empty load(m/s2) | 980m/s2(100g) | 980m/s2(100g) | 1175m/s2(100g) | 980m/s2(100g) | 980m/s2(100g) |
| Rated speed(m/s) | 1.8m/s | 1.8m/s | 2.0m/s | 2.0m/s | 1.5m/s |
| Rated replacement(mmp-p) | 25mm(p-p) | 25mm(p-p) | 50mm(p-p) | 51mm(p-p) | 51mm(p-p) |
| Max.testing load(kg) | 120kg | 200kg | 120kg | 300kg | 500kg |
| Power amplifier | KA-3 | KA-5 | KA-12 | KA-15 | KA-30 |
| Max.output(kVA) | 3kVA | 5kVA | 12kVA | 20kVA | 30kVA |
| Weight of moving part for vertical table(kg) | 2.7kg | 5.5kg | 8.4kg | 18kg | 25kg |
| Consumption power(kVA) | 4kVA | 9.7kVA | 20kVA | 30kVA | 40kVA |
| Signal-to-noise ratio | ≥65dB | ||||
| Input signal voltage | ≤1.5rms | ||||
| Input resistance | ≥15VkΩ | ||||
| Cooling way | Air cooling | ||||
| Continuous working time | 8h | ||||
| Operation environment | Temperature:0~40ºC;Humidity:≤90%RH(25ºC) | ||||
| Power supply | AC 3 phrases 50Hz 380V±10% | ||||
| Protective function | Grid overvoltage protection,Module overheat protection | ||||
| System fault protection,Grid undervoltage protection | |||||
| Output overcurrent protection,External protection,Overdisplacement protection | |||||
| Output overvoltage protection,Zero signal protection(reset) | |||||
| Substrate overheat protection,Module overcurrent protection | |||||
| Leakage protection | |||||
