Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Furnace Chamber Material: | Alumina Fiber | Certificate: | CE SGS ROHS UL |
| Classification: | Laboratory Heating Equipments | Max. Temperature: | 1800.C |
| Heating Element: | MoSi2 Heater | Temperature Control: | 30 Segments Programmable And PID Auto Control |
| High Light: | Laboratory Muffle Furnace,Vacuum Drying Oven |
||

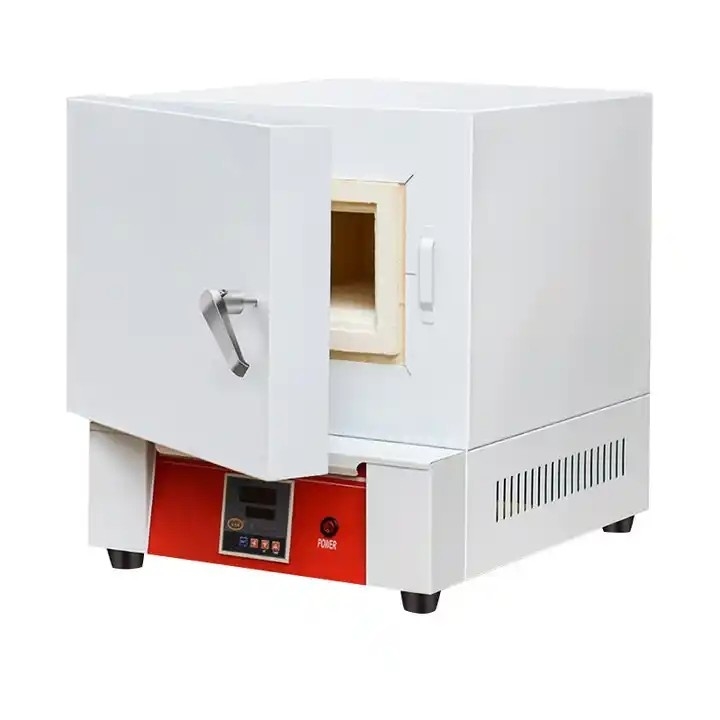

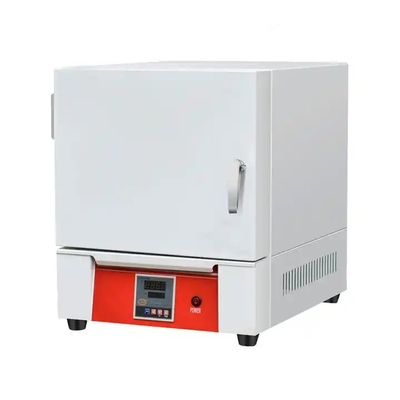

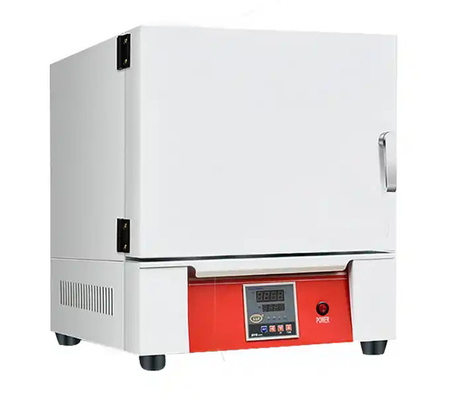

1800 ℃ High-Temperature Muffle Furnace Be Used For Sintering Of Cermets
product presentation:
Many experiments and procedures taken in the lab requiring extreme heat environment from
400-1800.C. For this purpose, the high temperature muffle furnace steps in as the necessary
part of laboratory equipment. Xinyu furnace are providing the muffle furnace at a affordable cost
including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.
The sizes of the muffle furnace various from the smaller furnaces which are conveniently placed on a workbench, to the larger units that has a coveted capacity and competent for all duty.
1800C muffle sintering oven structure:
High purity fibrous alumina insulation for maximum energy saving 60-80% less power consumption than other old style.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Double temperature controller to ensure furnace never over-shoot in any accident.
| Max.temperature | 1800C |
| Working temperature | 0-1700C |
| Furnace Chamber size(DWH)mm | 100*100*100 or as your requirement |
| Heat element | MoSi2 heater |
| voltage and frequency | 380v 50Hz/60Hz |
| Heating rate | 0-20C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | B type |
| Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
| Appearance design | The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use. |
| Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |
| Temperature control security | The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe. |
|
Furnace Chamber material |
Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace. |
|
Furnace chamber design |
Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. |
| Sandard accessories | Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Other temperature options | 1200C,1400C,1700C,1800C |
| Furnace chamber standard size | 100*100*100mm,200*150*150mm,300*200*200mm,400*300*300mm or other OEM size |
| Waranty | One year |
FAQ
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
