Product Details:
|
Type: | Drying Oven | Power: | 300W/1400W/2000W |
---|---|---|---|
Warranty: | 1 Year | Instrument Control Stability: | ±2℃ |
Voltage: | 200v/50Hz | Weight (KG): | 150 |
Temperature Range: | +50-300℃ | Accuracy Display: | 1℃ |
High Light: | Laboratory Muffle Furnace,Vacuum Drying Oven |

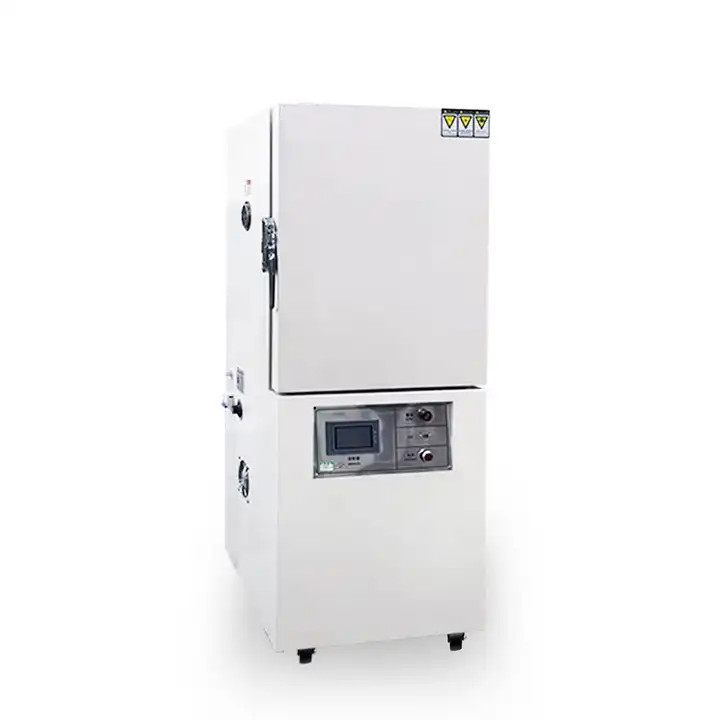

Vacuum Drying Oven Laboratory Equipment For Temperature Range +50-300℃
product presentation:
Vacuum drying oven is the series of vacuum drying oven with steam jacket indirect heating materials, and exhaust under high vacuum, so it is especially suitable for not high temperature resistant, easy to oxidize at high temperature materials or materials easy to produce powder when drying, and the steam discharged in the drying process must be recovered from the material drying operation. The dry material is added from the top of the shell in the middle, in the continuous rotation of the rake teeth stirring, the material in the shell wall contact, the surface constantly updated, the dry material by steam (or hot water, heat conduction oil) indirect heating, but the material water gasification, gasification of water by the vacuum pump in time. The dried material is indirectly heated by the heat carrier, so that the water in the material vaporized, vaporized water is discharged by the vacuum pump in time with steam jacket indirect heating material, and exhaust under high vacuum, so it is especially suitable for not high temperature resistant, easy oxidation at high temperature materials or dry materials easy to produce powder, And the steam discharged during the drying process must be recovered from the material drying operation. The dry material is added from the top of the shell in the middle, in the continuous rotation of the rake teeth stirring, the material in the shell wall contact, the surface constantly updated, the dry material by steam (or hot water, heat conduction oil) indirect heating, but the material water gasification, gasification of water by the vacuum pump in time. The dry material is indirectly heated by the heat carrier, so that the water in the material vaporizes, and the vaporized water is discharged in time by the vacuum pump
Box Specifications
|
|
Inner box size
|
Customized according to customer needs
|
Carton size
|
Customized according to customer needs
|
controller
|
Located on the right side of the machine, the single door opens from right to left;
|
Doors with glass windows, specifications
|
300*300mm (customizable)
|
Sealing material
|
High temperature resistant silicone
|
casters
|
The box is equipped with movable casters with brakes;
|

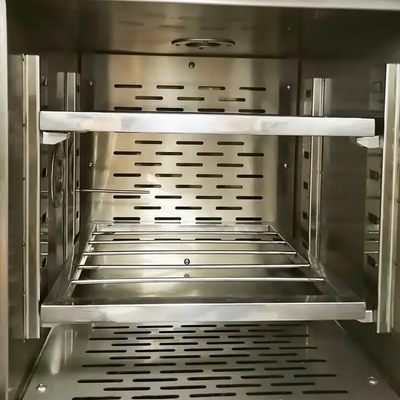

inner box
|
Using high temperature resistant SUS304# stainless steel, the thickness of the steel plate is 5.0mm;
|
The outer box adopts
|
1.2mm SECC steel plate, the outer surface of the steel plate is painted (beige);
|
Insulation material
|
The thermal insulation material is made of fiber rock wool, which has good thermal insulation performance, saving your electricity
and reducing the impact on the equipment |
Temperature control system
Temperature control PID digital display instrument, single-point temperature control, automatic calculation, PV/SV display at the same time, key setting, any temperature value between normal temperature and maximum temperature can be set |
|
Timing function
|
0-9999 hours, minutes, seconds, when the temperature is up, the heating stops, and the alarm prompts at the same time;
|
temperature line
|
(K) type;
|
output
|
3-32V;
|
current controller
|
SSR solid state relay;
|
heating method
|
Three-sided heating heat radiation; (left, right and bottom three sides of the inner box)
|
heating body
|
High temperature resistant heating tube;
|
temperature range
|
Normal temperature +50-300℃;
|
Instrument control stability
|
±2℃
|
Accuracy display
|
1℃
|
Temperature deviation uniformity in the box
|
±3℃%. (No vacuum door closing test, in vacuum state,
|
FAQ
1. Q:Are you manufacturer?
A: Yes, we are professional manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
