Product Details:
|
| Warranty: | 12 Months | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Heating Rate: | 0--30℃/min(recommended No More Than20℃/min) |
| Certificate: | Certificate | Temperature Control Precision: | ±1℃ |
| Vacuum Degree: | -0.1MPa | Power Supply: | 220V 50Hz / 380V 60hZ |
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||
product presentation:

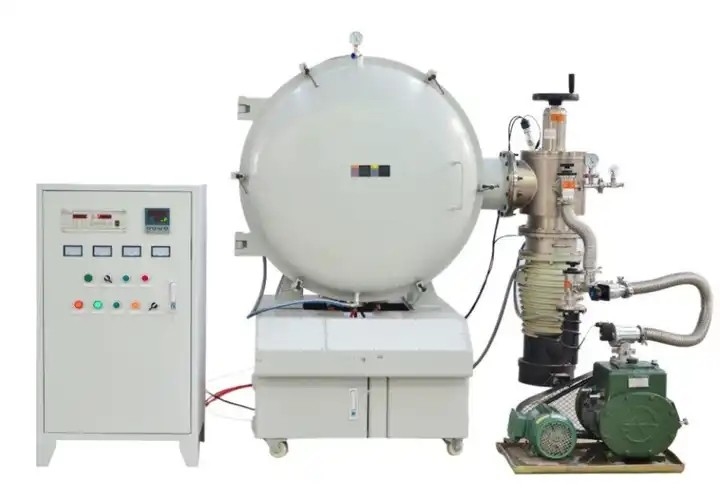

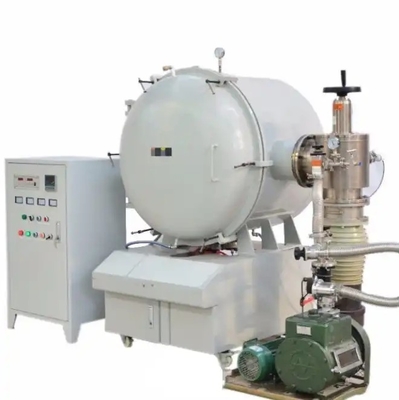

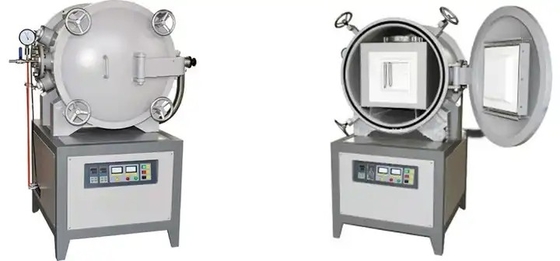

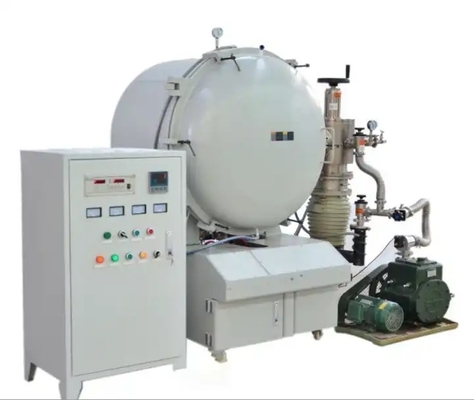

High temperature vacuum furnace using double shell structure, the square furnace design, convenient material, Japan with self-setting function of PID controller, furnace using new ceramic fiber lightweight materials, sealing chu with water cooling system, the furnace can be ventilated and vacuum (through hydrogen need to install accessories), high temperature furnace uniformity, low surface temperature, fast heating rate, energy saving, Is universities, scientific research institutes, enterprises atmosphere protection roasting and atmosphere, vacuum quality selection features l with 40 sections of temperature control procedures,40 groups of PID grouping Settings, can accurately control high and low temperature, Japan's original controller l with over temperature, broken couple, leakage and other protection functions, l using vacuum forming ceramic fiber refractory materials, heating speed, good insulation effect, stable furnace temperature, improve efficiency, save power high temperature vacuum furnace using double shell structure, using square furnace design, easy to put materials, Japan with self-setting function of PID controller, furnace using new ceramic fiber lightweight materials, Sealed chu with water cooling system, the furnace can be ventilated and vacuum (hydrogen needs to be installed accessories), high temperature furnace uniformity, low surface temperature, fast heating rate, energy saving, Is universities, scientific research institutes, enterprises atmosphere protection roasting and atmosphere, vacuum quality selection features l with 40 sections of temperature control procedures,40 groups of PID grouping Settings, can accurately control high and low temperature, Japan's original controller l with over temperature, broken couple, leakage and other protection functions, To ensure the safety of the use of vacuum forming ceramic fiber refractory materials, heating speed, insulation effect is good, stable furnace temperature, improve efficiency, save power
Specification:
| Model | GSA21N | GSA22N | GSA23N |
| Furnace size(W*H*D)mm | 150*150*80 | 200*150*150 | 300*200*200 |
| Outer size(W*H*D)mm | 735*750*1200 | 700*670*930 | 750*660*1020 |
| Weight(Kg) | 155 | 190 | 300 |
| power rating | 3KW | 5KW | 9KW |
| Power | 220V 50/60HZ | ||
| Temperature control precision | ±1℃ | ||
| vacuum degree | -0.1MPa | ||
| end-use temperature | maximum temperature 1800℃ | ||
| heating rate | 0--30℃/min(recommended less than 20℃/min) | ||
| Thermocouple | Type B | ||
| heating element | Silicon molybdenum rod | ||
| Display mode | Color LED display | ||
| gasket ring | Fluorine ring | ||
| vacuum pump | Oil-immersed single rotary vane vacuum pump | ||
| Measuring mode | mechanical pressure gauge | ||
| Furnace material | High alumina polycrystalline ceramic fiber | ||
| Furnace structure | double-layer forced air-cooling structure | ||
1.Can you customize a product without a design solution?
A:We have a professional team of designers who can provide design solutions and process according to customer requirements for equipment.
2.How to ensure the quality of products?
A:Before delivery, we will test each function of the equipment, and issue a test report for customer inspection, and then deliver the goods after
confirmation.
3.How long will it take to ship?
A:Generally15-30 days, depending on your specific requirements for equipment.
4.Are we unprofessional in the operation and installation of your machine?
A:We will provide product instructions and installation instructions, and if necessary, we can provide video instructions for installation. Also, we have
professional engineers who can solve all problems.
5.How to ship?
A:We support sea, air, rail transportation, etc., you can choose according to your needs. Of course you can also arrange the transport yourself.
