Product Details:
|
Long-term Working Temperature: | 1200℃ | Customized Support: | OEM |
---|---|---|---|
Furnace Tube Size: | 100*1000mm(out Diameter*length) | Heating Zone: | 300mm |
Max Working Temperature: | 1400℃ | Heating Rate: | 1-20 ℃ / Min Adjustable |
Suggested Heating Rate: | 3 ℃ / Min Temperature Rise Rate | Place Of Origin: | Made In China |
High Light: | Vacuum Brazing Furnace,Box Type Furnace |

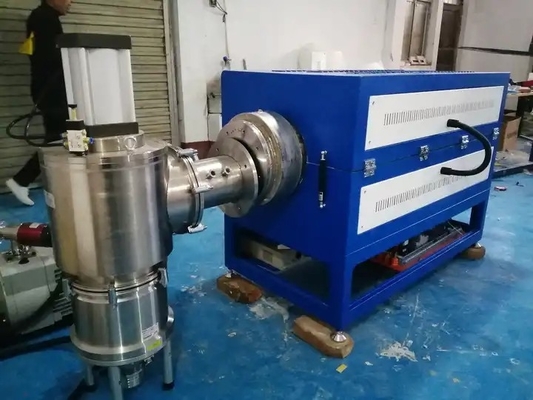

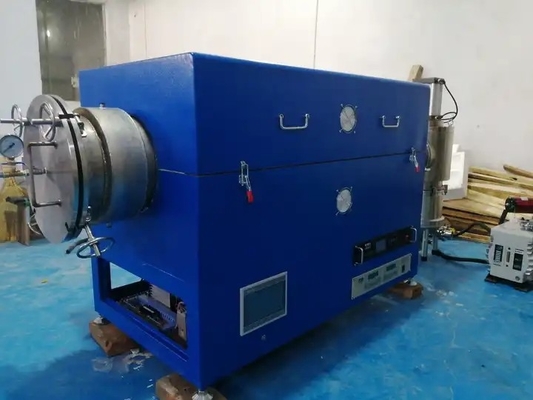

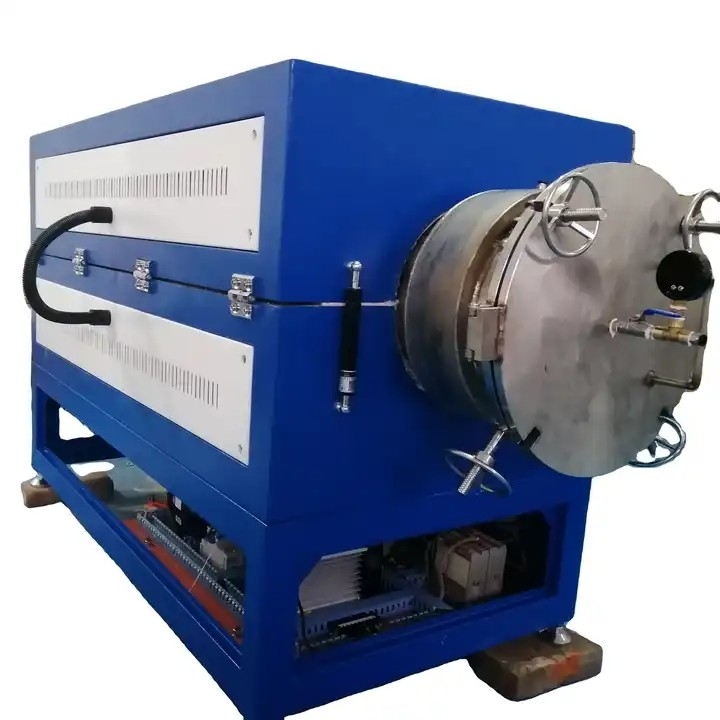

Intelligent programmable vacuum tube furnace intelligent control 1200℃
product description:
Mainly used for: ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, special materials, building materials, universities, research institutes, industrial and mining enterprises to do powder roasting, ceramic sintering, high temperature experiments, material processing, quality universities, research institutes Industrial and mining enterprises do high temperature atmosphere sintering, atmosphere reduction, CVD experiments, vacuum annealing and so on.

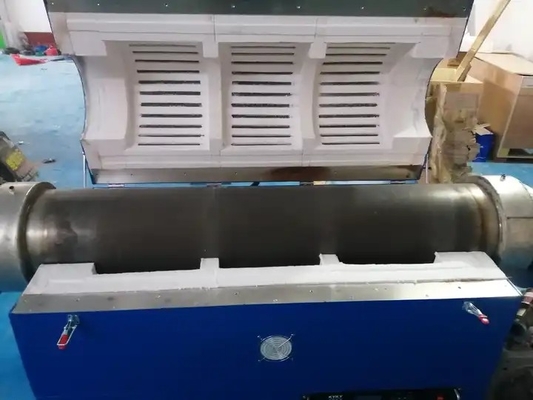

This furnace uses Silicon carbon rod as heating element, adopts double-layer shell structure and 31-stage program temperature control system, phase shift triggering, thyristor control, furnace high quality high purity alumina fiber, vacuum forming fiber poly light board material. . A double furnace structure is used. The furnace has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, and energy saving.
Adopting international advanced technology, the high-performance, high-energy-saving new type developed by ourselves adopts energy-saving ceramic fiber material double-layer structure, which can reduce the external temperature to normal temperature and make the inner cavity temperature distribution uniform.
project
|
Indicator value
|
||
Rated voltage
|
220V/380V
|
||
Design temperature
|
800℃,1000℃,1200℃,1400℃,1600℃,1700℃,1800℃
|
||
heating rate
|
≤0.1-40℃/min(Adjustable)
|
||
Heating element
|
High quality imported resistance wire/high quality U-shaped silicon carbide rod/high quality U-shaped silicon molybdenum rod
|
||
control accuracy
|
±1℃
|
||
temperature control
|
LCD touch screen PLC control, PID regulation, intelligent microcomputer control, multi section programmable temperature control
curve, no need to watch (fully automatic temperature rise, thermal insulation, door opening and power off)
|
||
Temperature measuring element
|
K(0-1300℃)/S(0-1600℃)/B(0-1820℃)
|
||
Furnace material
|
Ceramic polycrystalline fiber/alumina fiber/composite alumina fiber/high-purity composite alumina fiber/imported fiber
|
||
Furnace tube material
|
High-purity quartz/999 corundum/heat-resistant stainless steel/imported stainless steel
|
||
Furnace door structure
|
Side open front door
|
||
Heat dissipation mode
|
Double shell, air insulation
|
||
Surface temperature rise
|
≤30℃
|
||
Certificate
|
CE
|
||
Random gift
|
2 heating rods,2 rod tools,,1 crucible clamp,1 pair of fire-resistant gloves,,1 furnace bottom plate,1 copy of certificate of,conformity
|
||
remarks
|
Any size can be customized
|
