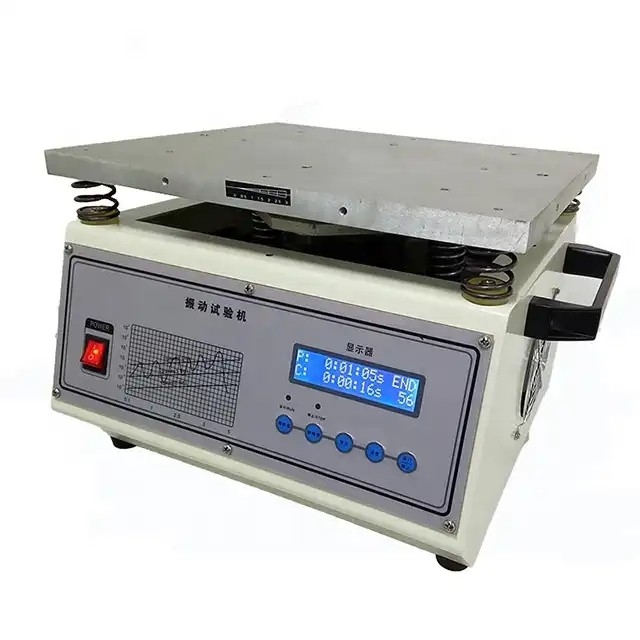

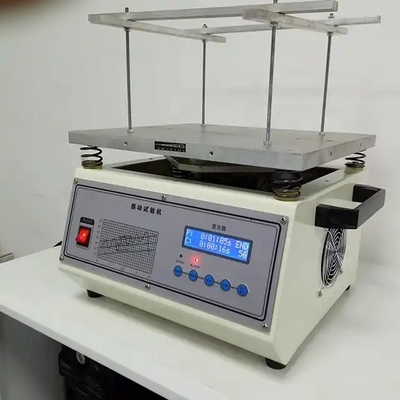

Mobile Phone Electromagnetic Fixed Frequency Vibration Testing Machine

Large Image : Mobile Phone Electromagnetic Fixed Frequency Vibration Testing Machine

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GSKA
Certification:	CE
Model Number:	vibration testing machine

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiate
Price:	Negotiate
Packaging Details:	Export package
Delivery Time:	10-60days after confirmed payment or by contract stipulation
Payment Terms:	L/C, T/T
Supply Ability:	100 Set / Sets per Month

Contact Now

Mobile Phone Electromagnetic Fixed Frequency Vibration Testing Machine

Description

Vibration Waveforms::	Sine Wave	Amplitude::	0 ~ 5MM
Table Size::	400 * 350 * 300 Mm	Test Load::	40KG
The Power Supply Voltage (V)::	220v	Maximum Current::	3A
Power::	Electronic	Plug:	OEM, ODM, OBM
High Light:	Vibration Test Bench , Vibration Testing Machine

Mobile Phone Electromagnetic Fixed Frequency Vibration Testing Machine

Application:

Ability to identify whether the product is put up for environmental vibration for electronic, electrical, optical, steam
locomotives, toys, packaging and other industries ...... research, development, quality control, and manufacturing.

Mechanical structure and material:

1. The load plate adopts imported advanced SUS31NNI hafnium aluminum alloy sheet, for loads up to 40KG.

2. Test tops, paint production, rubbing, nice.

3. The inside of the machine with variable speed vibration controlled rail, study hard and durable.

4. The control system uses a control program can be realistically simulated field test.

Protection device:

1. The timing of when to automatically cut off the power supply unit

2. overload, automatically cut off power supply unit

3. With safety warning light device

Attachment:

quality assurance book instructions.

Operation environment:

Ambient temperature range performance guarantees: + 5 ℃ ~ + 55 ℃

(Except for the lowest up to temperature, the maximum heat load capacity and cooling time)

Technical parameters:

1. Table Size	400 * 350 * 300 mm (L × W × H)
2. Test Load	40KG
3. Frequency Range	50HZ
4. Amplitude	0 ~ 5MM
5. Acceleration	20g
6. The vibration direction	vertical
7. vibration waveforms	sine wave
8. The power supply voltage (V)	220 ± 20%
9. Maximum current	3A
10 Power	0.75KW

Mobile Phone Electromagnetic Fixed Frequency Vibration Testing Machine 0

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair
