Product Details:
|
| Temperature Deviation: | ≦±2.0℃ | Temperature Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Humidity Deviation: | ±3.0％RH(＞75％RH) | Humidity Fluctuation: | ±2.0％RH |
| Season: | 2000 Hz | Max Acceleration: | 1000m/s2 |
| Humidity: | 0～90% (No Condensation) | Body Size( No Packing)(L×W×H): | 1182mm×758mm×1052mm |
| High Light: | Vibration Test Bench,Vibration Testing Machine |
||

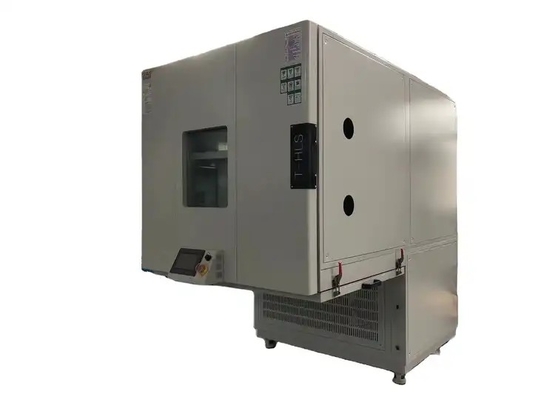

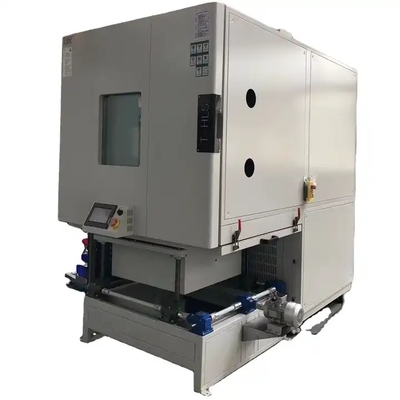

Temperature And Humidity Climate Test Chamber Vibration Testing Machine
Performance Feature:
1. A Temperature Limit and alarm is included to protect your product.
2. Fog-free viewing window and interior light make viewing workspace hassle-free.
3. Humidity water filtration system to filter impurities and protect chamber interior.
4. An electronic humidity sensor is used on all humidity models for accuracy and minimal maintenance.
The chambers are suitable for testing electrical and electronic components and sensors, semiconductors, mainboards, liquid crystal displays and LED's, drug stability testing, mechanical/military/aviation engineering, automobile, transportation/automobile supporting industry, chemical/petroleum industry, structural materials/plastic/textile industry, mold, tobacco, paint testing, metal-related industries testing, etc.
Product Description:

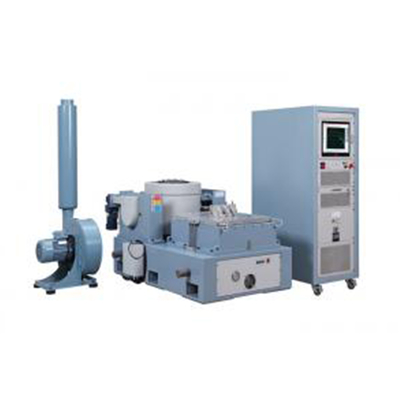

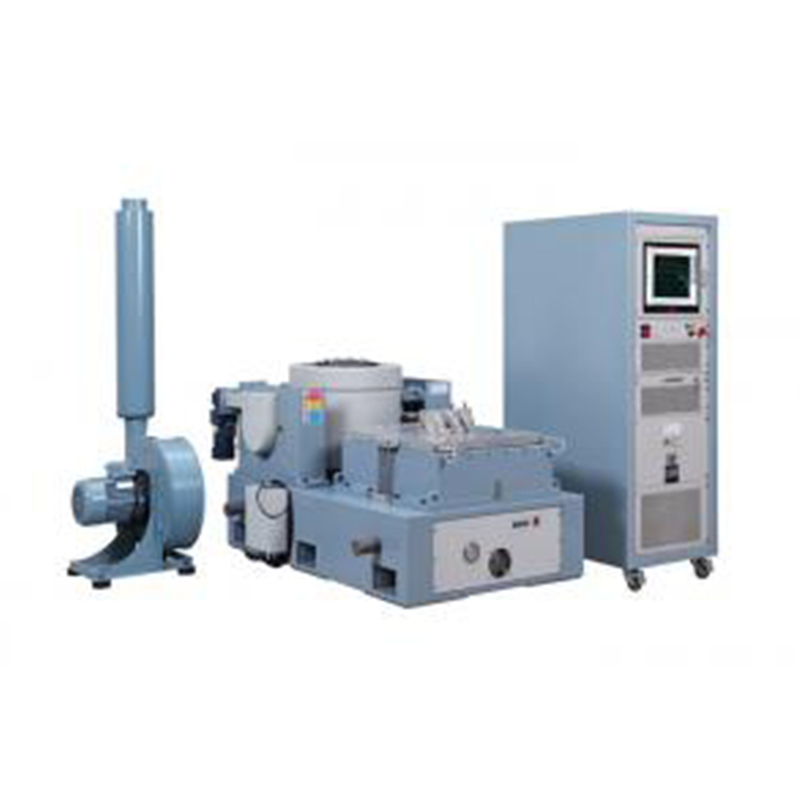

Industrial-quality chambers for combination testing with vibration systems
For years chambers have been the workhorses of the environmental test chamber industry. Originally created to meet military test standards, their flexible design has made them suitable for a wide variety of applications. Fast temperature changes of 5 to 25°C/m. are possible, even with significant loads. The chambers have a removable floor, allowing integration with vibration test systems. Custom designs are common, allowing configuration to meet your exact requirements.
Main Technical Parameters:
| Temperature deviation | ≦±2.0℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | ≦2.0℃ |
| Humidity deviation | ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
| Humidity fluctuation | ±2.0％RH |
| Heater | High-quality nickel-chromium alloy wire electric heater, non-contact control (SRR) |
| Compressor | BOCK Semi-hermetic compressors |
| Display Resolution | Temperature: + 0.01ºC; Humidity: + 0.1%; time: 1min |
| Cable port | Φ50mm*1 located on both sides(each*1) with a rubber stopper and plastic cover |
| Temperature change rate | Heating rate: -70℃ to +150℃ nonlinear 5℃/min no load Cooling rate: +150℃ to - 70℃ nonlinear 2℃/min no load |
| Rated Sine Force(peak) | 20 kN |
| Max Velocity | 2.0 m/s |
| Max Acceleration | 1000m/s2 |
| Body Size( No packing)(L×W×H) | 1182mm×758mm×1052mm |
| Horizontal slide Table size (mm) | 600×600 mm |
| Use Frequency (Hz) | 2000 Hz |
| Fan power | 7.5 KW |
| Wind pressure | 3.5 Kpa |
| Humidity | 0～90% (No condensation) |
| One class resonant frequency | 2500Hz±5% |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
