Product Details:
|
| Inner Chamber Size(mm)W*H*D: | 1000*1000*1000 | Cooling Rate: | ≥1°C/min |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

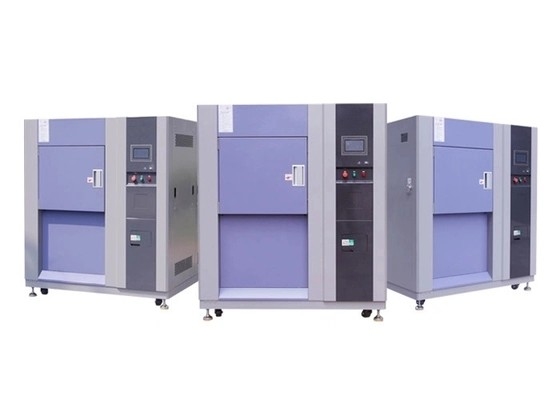

Laboratory Humidity Temperature Chamber Touch Screen Equipment
Applications:
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spareparts, particularly applies to environmental stress screening test(ESS)
| Shock Temperature ragne | -65°C~150°C |
| Heating up time | RT~200°C about 35min |
| Cooling down time | RT~-70°C about 90min |
|
Temp recover time/ change time |
≤5min / ≤10sec |
| Temp control accuracy/ | ±0.5°C / ±2.0°C |
| distribution accuracy | |
| Inner materials | SUS 304# stainless steel plate for inner chamber,and stainless steel plate |
| + spray painting for external chamber. | |
| Insulation materials | High-temperature high-density amino acid ethyl ester foam insulator material. |
| Systems | P.I.D+S.S.R+Microcomputer balanced temperature control system. |
| Cooling systems | Semi-hermetic two-stage compressor (water-cooled) / |
| hermetic two-stage compressor (air-cooled). | |
| Safety devices | Fuse switch, high and low pressure protection switch compressors, |
| refrigerant pressure protection switch failure warning system, electronic siren. | |
| Fitting | Outlook window (special purchase), the upper and lower adjustable |
| compartment two energized measured line hole, casters,level bracket. | |
| Power | 3 phase AC380V 50HZ/60HZ |
| Controller | Tanwan TATO or TH900C |
| Compressor | Germany / Bock Brand |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
