Product Details:
|
| Warranty: | 1 Year | Control Accuracy Of Temperature: | +/-0.5degree C |
|---|---|---|---|
| Certification: | CE, TUV, ISO | Place Of Origin: | Dongguan China |
| Distribution Uniformity Of Temperature: | +/-2.0degree C | Approx. Weight (Kg): | 150~450 |
| Brand Name: | GSKA | Customized Support: | OEM |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

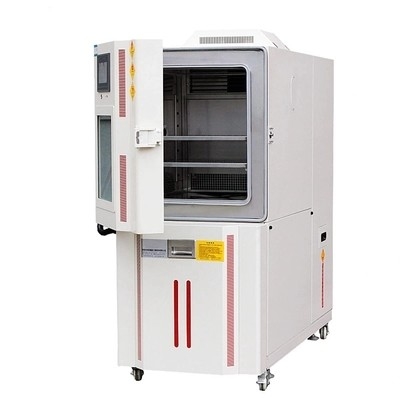

OEM Laboratory Programmable Temperature Humidity Test Chamber Desktop
Environmental Test Chamber features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.

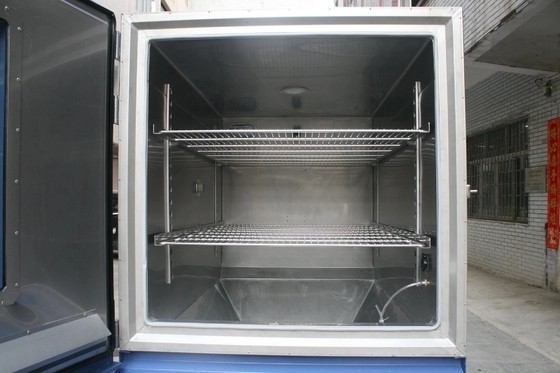

2. Rectangular double-paned viewing window for observation of sample under test,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing function
8. Quick or ramp rates control of temperature and humidity.
9. Casters are provided for ease of mobility, with strong positioning screws.
Application:
high low temperature alternating test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
technical parameters:
| Model | GSKA-80 (A~F) |
GSKA-150 (A~F) |
GSKA-225 (A~F) |
GSKA-408 (A~F) |
GSKA-800 (A~F) |
GSKA-1000 (A~F) |
|||||
| Internal Dimensions WxHxD (mm) |
400x500 x400 |
500x60 0x500 |
600x750 x500 |
600x850 x800 |
1000x1000 x800 |
1000x1000 x1000 |
|||||
| External Dimensions WxHxD (mm) |
950x1650 x950 |
1050x1750 x1050 |
1200x1900 x1150 |
1200x1950 x1350 |
1600x2000 x1450 |
1600x2100 x1450 |
|||||
| Temperature Range | Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC) High Temperature 150ºC |
||||||||||
| Analytic Accuracy/Distribution Uniformity of Temperature | 0.1ºC /±2.0ºC | ||||||||||
| Control Accuracy of Temperature |
±0.5ºC | ||||||||||
| Temperature Rising / Falling Velocity |
Temperature rising approx. 0.1~3.0ºC/min ; temperature falling approx. 0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºC per minute is a special optional condition) |
||||||||||
| Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated. | ||||||||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||||||
| Cooling System | Wind cooled or water cooled,single segment compressor for -40ºC, double segment compressor for -70ºC | ||||||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system | ||||||||||
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Dehumidifier | ||||||||||
| Compressor | French Tecumseh Brand,Germany Bizer Brand | ||||||||||
| Power | AC 220V, 1∮ 3 Lines,50/60HZ ; AC 380V ,3∮ 5 Lines,50/60HZ | ||||||||||
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 | |||||
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Temperature Alternating Test Chamber,High Low Temperature Environmental Test Equipment, Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
