Product Details:
|
| Temperature Range: | 40~150 Degree | Cabling Port: | Diameter 50mm / 100mm Optional |
|---|---|---|---|
| Inner Material: | SUS304 Stailess Steel | Origin: | Guangdong, China |
| Humidity Range: | 20%~98% Relative Humidity | Power Supply: | AC220V/AC380V, Customized |
| Service: | OEM / ODM | Specification: | Customization Available |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

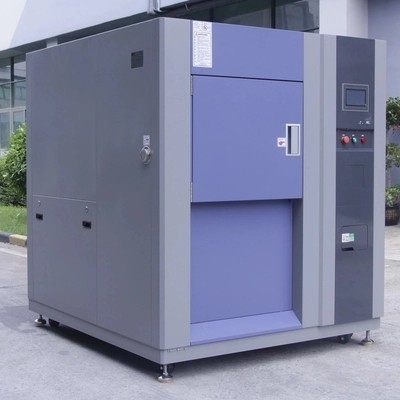

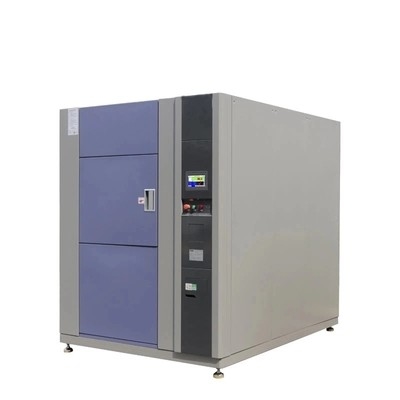

High Low Temperature And Humidity Test Chambers AC220V / 380V
Features:
1.High performance and quiet operation (65 dBa)
2.Space-saving footprint, designed for flush installation to wall
3.Stainless steel exterior
4.Full thermal break around doorframe
5.One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
6.Three levels of overheat protection, plus overcool protection
7.Easy lift-off service panels, electrical access on left
8.Detachable eight-foot power cord with plug
9.Direct water supply connection for continuous operation (supply tank optional)
10.ETL listed electrical panel conforming to UL 508A
Technical parameters:
| Model | GSKA-80 | GSKA-150 | GSKA-225 | GSKA-408 | GSKA-800 | GSKA-1000 |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC) | |||||
| Humidity range | 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition) | |||||
| Temp analytic accuracy/uniformity | 0.1ºC/±2.0ºC | |||||
| Temperature Fluctuation | ±0.5ºC | |||||
| Humidity analytic accuracy/ Humidity control accuracy | ±0.1%;±2.5% | |||||
| Heat; cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) | |||||
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system | |||||
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4 | |||||
| Compressor | Original France"Tecumseh"brand | |||||
| Controller | TEMI South Korea | |||||
| Power | AC220V 50/60Hz & 1, AC380V 50/60Hz 3 | |||||
| weight (kg) | 150 | 220 | 270 | 320 | 450 | 580 |
