Product Details:
|
| Compressor: | France Tecumseh | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Temp Humidity Chamber,Walk In Environmental Chamber |
||

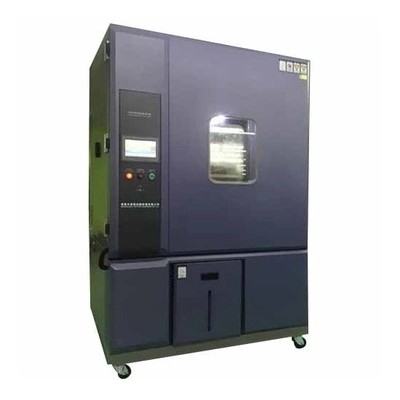

OEM Temperature And Humidity Test Box 220V 50Hz Power Dustproof
Enclosure structure:
1, the liner is imported (SUS304) high quality stainless steel plate;
2, insulation material: hard polyurethane foam + glass fiber;
3, the use of non-reaction door handle, easier to operate;
4. The bottom of the machine adopts high quality PU movable wheel;
5, the outer bile are made of high quality (t=1.2mm) A3 steel plate CNC machine processing molding, the surface of the shell is sprayed with plastic treatment, more bright and clean, beautiful;
6, stirring system: the use of long shaft fan motor, high and low temperature resistant stainless steel multi-wing impeller, to achieve the strength of convection vertical diffusion circulation;
7, between the door and the box with a double layer of high temperature resistant high tensile sealing strip to ensure the test area airtight;
8. The observation window is made of multi-layer hollow toughened glass with conductive film glued inside (the test process can be clearly observed);
9, optional test hole: installed on the left side of the machine diameter of 50mm, used for external test power line or signal line use. (Aperture and number of holes need to be separately stated before ordering).
How a Humidity Chamber Works:
The main components of a humidity chamber are mechanisms that introduce moisture and heat. There are a variety of methods used to introduce moisture into the chamber, which can be in the form of a spray or bath. The same concept applies to heat that is supplied in the form of coils or heating elements.
In most cases, humidity chambers are designed, manufactured, and produced to fit the setting that the customer requires. Though there are many varieties of chambers, the basic components of heat and moisture are necessary to create the needed humid conditions.
Applications:
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spareparts, particularly applies to environmental stress screening test(ESS)
Main Technical Parameter:
| Inside size WxHxD (dm) |
40x50*40; 50x60x50;50x75x60;60x85x80; 80x95x80;100x100x80;100x100x100 |
| Outside size W*H*D (dm) |
90x136x94;100x146x104;100x161x117;110x171x137; 130x181x137;150x186x137;150x186x157 |
| Temperature range | -70 degree ~ +100(150) degree |
| Humidity range | 20%~98%R.H. |
| Accuracy/ uniformly | ±0.1 degree ±0.1%R.H./ ±1.0 degree ±3.0%R.H. |
| Accuracy / volatility | ±1.0 degree ±2.0%R.H. / ±0.5 degree ±2.0%R.H. |
| Heating / cooling time |
About 4.0/min(heat),about 1.0/min(cool) ( 5~10/mm is the specific condition ) |
| Inside material | Stainless steel SUS 304 # |
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, |

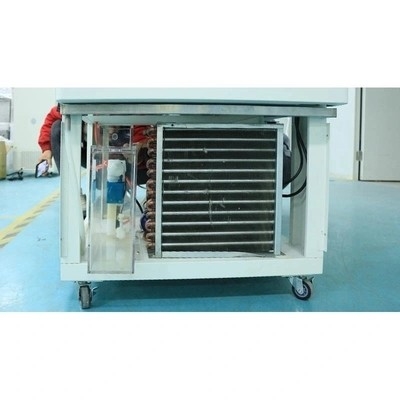

| Cooling system |
Air-cooled/ single-stage compressor(-20 degree) , wind, water cooled/two-stage compressor(-40~-70 degree) |
| Protection |
compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system |
| Accessories |
recorder(purchase), view window, 50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller | TEMI300 digital controller from South Korea |
| Compressor | France Taikang |
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Test Standard:
1. IEC - 529 dustproof test method
2. GB4208-93 dustproof test method
3. GB2423.37-89 dustproof test method
4. GJB150.12 dustproof test method
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
