Product Details:
|
Temperature Range: | RT~500C | Temperature Fluctuation: | ±1.0℃ |
---|---|---|---|
Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
Power: | 220V , 50Hz | Keyword: | Environmental Chambers |
High Light: | Temp Humidity Chamber,Walk In Environmental Chamber |

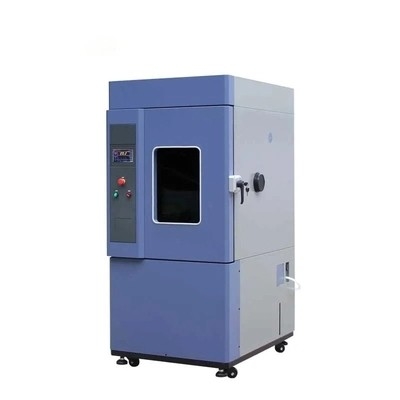

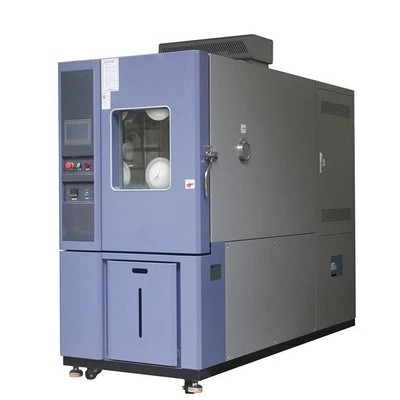

150L Environmental Test Chamber Hot Air Circulating System OEM
Features:
1. Perfect shape design: arc shape and surface spray treatment, high-quality appearance, and flat non-reaction handle, easy to operate, safe and reliable.
2. Large observation window with bright and wide field of vision: using three-layer vacuum coating window and Philips energy-saving fluorescent lamp, no need for wipers to remove fog, maintain a clear observation effect, and can observe the condition of the test product at any time.
3. The humidification system pipeline is separated from the control circuit: the humidification system pipeline is separated from the power supply, the controller and the circuit board, which can avoid the circuit being affected by the leakage of the pipeline and improve the safety.
4. Advanced and reliable refrigeration and control system: Original imported European and American fully enclosed compressors, imported environmentally friendly refrigerants, world-renowned brand refrigeration devices, imported LCD touch screen controller, friendly interface, easy to operate.
Product Usage:
This series of products is suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components to test their performance indicators in high and low temperature or humid and hot environments.
Specifications :
Product Name | Environmental Test Chamber |
Internal size | 80L:W500*H400*D400mm(Can be customized according to customer needs) |
External size | 80L:W1400*H1850*D1500mm(Can be customized according to customer needs) |
Temperature shock range | High temperature +60℃~ +150℃ Low temperature -40℃~ -10℃ |
Preheating temperature range | 60℃--200℃ |
High temperature tank heating time | RT~+200℃≤30min (RT:+10~+30℃) |
Precooling temperature range | (-10)℃~ (-70)℃ |
Low temperature tank cooling time | RT~-70℃≤50min (RT:+10~+30℃) |
Temperature fluctuation
|
±1.0℃ |
Temperature uniformity | ±2.0℃ |
Throttle conversion time | ≤5S |
Impact recovery time | (-40)℃~(+150)℃≤5min |
Heating system | Fin-type radiating tube-shaped stainless steel electric heater 1, high temperature tank 9KW 2, low temperature tank 6KW |
Compressor | Original imported French "Taikang" brand fully enclosed compressor |
Condenser
|
Water-cooled condensing agent |
Evaporator | Multi-stage automatic load capacity adjustment of bullying fins |
Expansion valve | Danvers imported original components from Denmark |
Refrigerant | The latest environment-friendly refrigerant R404A imported from USA |
Standard Compliance:
1. IEC68-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold
2. IEC68-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat
3. IEC68-2-3 Environmental testing for electric and electronic products - Part 2: Testing method test Cab: Damp heat Steady state
4. IEC68-2-30 Environmental testing for electric and electronic products - Part 2: Test method - Test Db: Damp heat,cyclic ( 12h+12h cycle)
5. IEC68-2-14 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
6. MIL-STD-810D High temperature test
7. MIL-STD-810D Low temperature test
8. MIL-STD-810D Damp heat test
