Product Details:
|
| Customized Support: | OEM | Temp Fluctuation: | ±0.5% |
|---|---|---|---|
| Internal Chamber: | Stainless Steel(SUS304) | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Altitude Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Brand: | GSKA | Power: | Electronic, Electronic |
| High Light: | Temp Humidity Chamber,Walk In Environmental Chamber |
||

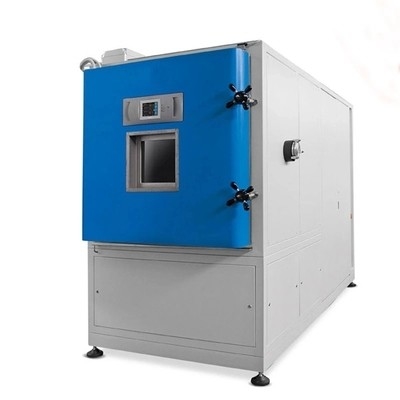

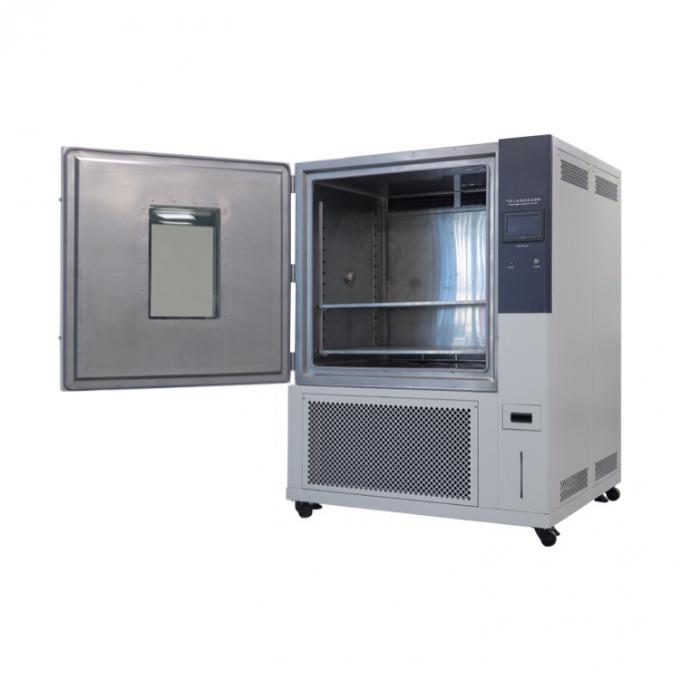

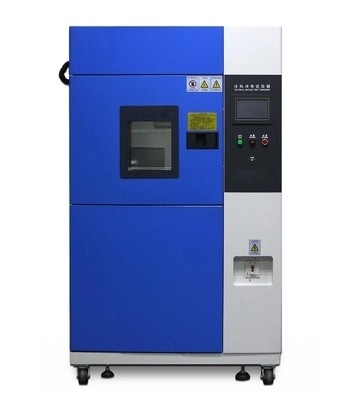

(GSKA Factory Price) Environmental Climatic Box Temperature -70 ~170ºC
Characteristics:
1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Optional accessories:
1, Low Humidity and Dehumidifying sytstem.
2, Inner glass door with manual operating ports.
3, Temp./Humi.Recorder.
4, Pure water treatment device
5, RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
6, Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
| Inner chamber volume(v) | 100L | 150L | 252L | 504L | 1000L |
| Outer Diemension W*D*H(cm) | 98*95*160 | 98*105*170 | 108*112*180 | 128*125*200 | 148*155*210 |
| Packing Size | 113*110*175 | 113*120*185 | 123*127*195 | 133*140*215 | 163*160*225 |
| G.W(kg) | 340 | 370 | 430 | 460 | 600 |
| Temperature Range | A:-20℃-150℃ B:-40℃-150℃ C:-60℃-150℃ D:-80℃-150℃ | ||||
| TemperatureFluctuation | ≤ ±0.5℃ (standard) | ||||
| Temperature Evenness | ≤ ±2℃ | ||||
| Temperature Deviation |
≤ 1℃
|
||||
| Accuracy | 0.1℃ (standard) | ||||
| Temperature Rise Speed | 1.0℃~3.0℃/min | ||||
| Temperature Down Speed | 0.7℃~1.2℃/min | ||||
| Time needed for heating |
RT℃~150℃≤30min
|
||||
| Time needed for cooling | RT℃~-40℃≤30min | ||||
| The machine noise | ≤72dB(A) | ||||
| Load on the largest | 100kg,≤20 kg/layer | 150kg,≤26 kg/layer | 260kg,≤30 kg/layer | 260kg,≤40 kg/layer | 300kg,≤60 kg/layer |
| Equipment installed power | ~1.95KW | ~2.35KW | ~2.85KW | ~3.5KW | ~4.35KW |
| Material |
The studio:# SUS304 stainless steel
|
The outer wall:A3 carbon steel plate with plastic spray/ #SUS304
|
|||
| Wind Cycling Way | Centrifugal fan-broadband type forced air ciruculation | ||||
| Refrigeration Way |
Single stage compression refrigeration
|
||||
| Refrigerater |
French Tecumseh
|
||||
| Refrigerats | R404A USA Dupont environment protection refrigerant | ||||
| Condesing Way | Air-cooled or water-cooled | ||||
| Heater | Nickel Chorme Heating Wire Heater | ||||
| Control Instrument | HLS touch screen | ||||
| Design Criteria | GJB150.3 GJB150.4 GB/T2423.22 GB10589-89 GB11158-89 | ||||
| Standard Accessories parts |
Observe window(double-deck cavity toughened glass),PL inner chamber,Wet and dry bull gauze, 3 fues, 1 power line
|
||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
