Product Details:
|
| Temperature Range: | -70℃ ～180℃ | Window Size WH (mm): | 400*500mm |
|---|---|---|---|
| Temperature Variation: | ±2℃ | Cooling Rate: | Average 1.0℃/min, Or 15℃/min, |
| Brand Name: | GSKA | Weight: | 225KG |
| Heating Rate: | ≥2.5°C/min | Applied Standard: | IEC60068 Series |
| High Light: | Temp Humidity Chamber,Walk In Environmental Chamber |
||

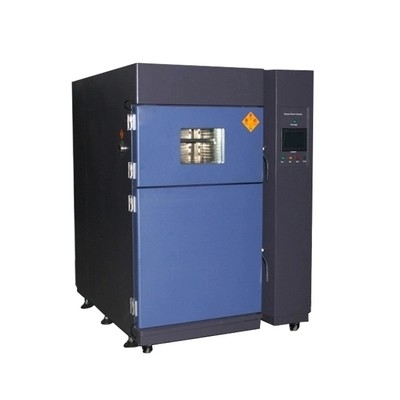

OEM Refrigerating Cycle High And Low Temperature Test Chambers Weight 225KG
brief introduction:
High and low temperature test chamber products with the simulation of atmospheric environment temperature change law. Mainly for electrical, electronic products, as well as its components and other materials in the high temperature, low temperature comprehensive environment transport, use of adaptability test. Used in product design, improvement, appraisal and inspection. High and low temperature test chamber according to the test method and industry standards can be divided into alternating test, constant temperature test, two kinds of test methods are based on high and low temperature test chamber upgrade, alternating test chamber can refers to disposable will need to do the high temperature, low temperature, as well as the required temperature of time setting within the instrument parameters, test chamber will walk according to the set, The high and low temperature test chamber is to make a fixed temperature, so that the test effect is closer to the natural climate, simulate a more severe natural climate, so that the reliability of the tested sample is higher.
the exclusion of environmental test conditions:
Every time, carrying out reliability test of the environment or the environmental factors in the category, quantity and tolerance has strict rules, unless the test required environmental factors permeate side by side, so that at the end of the trial or trial judge and analysis of product failure and fault mode, providing the basis of the exact, so the requirements stipulated in the environmental testing equipment in addition to providing environmental conditions, It is not allowed to attach other environmental stress interference to the test product. Such as the mesa magnetic leakage, acceleration signal-to-noise ratio and total RMS ratio of in-band external velocity defined in the verification regulation of electric shaking table. The test of random signal, harmonic distortion and other precision indexes are all verification items designed to ensure the uniqueness of environmental test conditions.
Safety and reliability of test equipment:
Environmental testing, especially the reliability test, the test cycle is long, the test object is sometimes worth of military industrial products is very high, in the process of test, test personnel often have to operate or test work around at the scene, so the environment test equipment must be running safety, convenient operation and reliable in use, long service life, etc, in order to ensure the normal conduct of test itself. All kinds of protection, alarm measures and safety interlocking devices of test equipment should be perfect and reliable to ensure the safety and reliability of test personnel, test products and test equipment itself.
Specification:
| Material | Inner material | SUS 304# steel plate | |||
| Outside material | SUS 304# steel plate(surface disposing) | ||||
| Thermal insulation material | Thermostability high density chlorine formic acid foam insulator material |
||||
| System wind pathround-robin mode | centrifugal fan-broadband enforce circulation | ||||
| Refrigeration way | Single stage compression refrigeration | ||||
| Refrigerator | whole sealing piston France Taikang brand Compressor | ||||
| Freezing fluid | R4O4A or USA Dupont environmental protection refrigerant(R23+R404) |
||||
| Condensation way | forced air cooling or water-cooling | ||||
| Heater | Nichrome heating wire heating | ||||
| Humidifier | Semi-enclosed steam humidification | ||||
| Water-provide way | full-automatic periodical feeding | ||||
| Standard configuration | 1 Observe window(double-deck cavity toughened glass),1 50mm test hole in the left,1 PL inner chamber lamp,2clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
||||
| Safety device | Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection,Protection switch,fuse stoppage warning system |
||||
| Power | 1φ 220V AC±10% 50/60Hz 3φ 380V AC±10% 50/60Hz | ||||
Constant High Low Temperature Humidity Test Chamber Cabinet Programmable special for you , any question , please let us know,thank you
