Product Details:
|
| Compressor: | French Tecumseh Brand, Germany Brand | Humidity Range: | 20%-98%RH |
|---|---|---|---|
| Control Accuracy Of Temperature: | ±0.5℃ | Power: | AC380V |
| Keyword: | Walk In Temperature Room | Temperature Range: | -40℃~120℃ |
| Control Accuracy Of Humidity: | ±3.5% R.H. | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temp Humidity Chamber,Walk In Environmental Chamber |
||

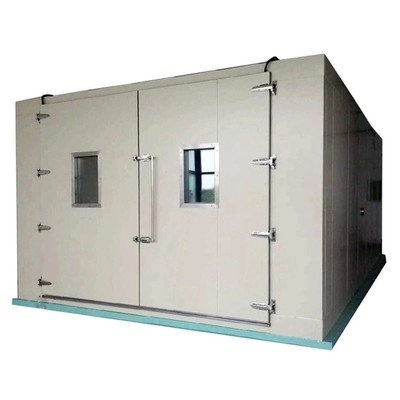

Heating Up -40°C ~ +100°C Walk In Environmental Chamber Display LCD
Equipment Overview:
This walk-in test chamber simulates the temperature and humidity changeable environment for the products or materials. It is widely used in the adaptability test of electrical, electronics, instrument and meter and other product parts under high and low temperature and humid environment during storage, transportation and usage, to determine the temperature adaptability of the above products or materials to high and low temperature and humid environment, especially for product electrification changes in performance and mechanical properties.
Walk-in laboratory performance and characteristics:
1, with a very wide temperature and humidity control range, can meet the needs of users. The unique balanced temperature and humidity control method can obtain a safe and accurate temperature and humidity environment. With stable and balanced heating and humidification performance, high precision, high stability of temperature and humidity control.
2, equipped with high precision intelligent temperature regulator, temperature and humidity by LED digital display mode. Temperature and humidity recorder is optional.
3, automatic selection of refrigeration circuit, automatic control device with the temperature of the set value of automatic selection of refrigeration circuit performance, to achieve high temperature state directly start the refrigerator, direct cooling.
4. The inner door is equipped with a large observation window, which can facilitate the observation of the test state of the sample.
5, equipped with advanced safety, protection device - leakage circuit breaker, overtemperature protector, lack of phase protector, water protector.
High and low temperature test chamber, constant temperature and humidity laboratory, high and low temperature humidity and heat laboratory, high and low temperature alternating humidity and heat laboratory, salt spray corrosion laboratory, the above laboratory can be customized according to customer requirements.
Detailed Parameters:
| System | Balanced Temperature & Humidity Control System |
| Temp. range | -70°C~150°C |
| Humid. range | 20 ~ 98 percent R.H. |
| Temp. & Humid. accuracy | ± 0.3°C; ± 2 percent R.H |
| Temp. & Humid. regularity | ± 1°C; ± 3 percent RH |
| Resolution | 0.1°C, 1 percent, P.I.D control |
| Heating up | -40°C ~ +100°C within 45 min |
| Heating down | 20°C~ -20°Cwithin 40min |
| Interior dimension(W×D×H) | 60×80×85cm |
| Exterior dimension(W×D×H) | 120×135×175cm |
| Interior material | Stainless steel plate(SUS304) |
| Exterior material | Stainless steel plate(SUS304) |
| Insulation | Rigid foam |
| Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display | LCD |
| Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Weight | Approx. 400kg |
| Power | AC220V±10 percent 50/60Hz |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
