Product Details:
|
| Sine:: | 2,000 Kgf (peak) | Shock: | 4,000 Kgf (peak) |
|---|---|---|---|
| Certification: | CE | Frequency Range:: | 2 Hz To 2500 KHz |
| Maximum Velocity: | 2.0m/s | Maximum Acceleration:: | 90G (half Sine) With A Bare Armature |
| Maximum Payload:: | 500 Kg | Maximum Displacement: Shock: | 100 Mm (p-p) |
| High Light: | Vibration Test Bench,Vibration Testing Machine |
||

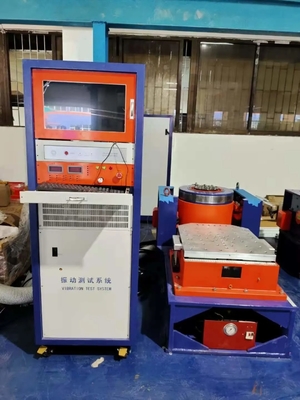

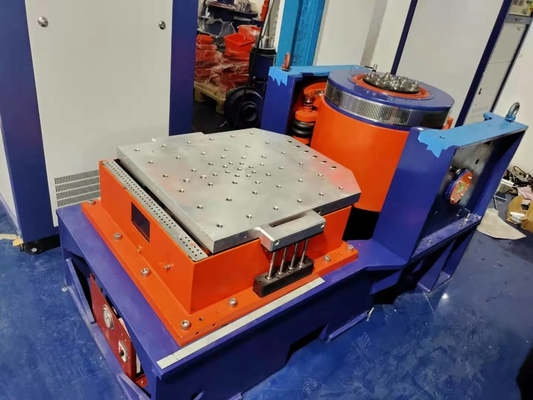

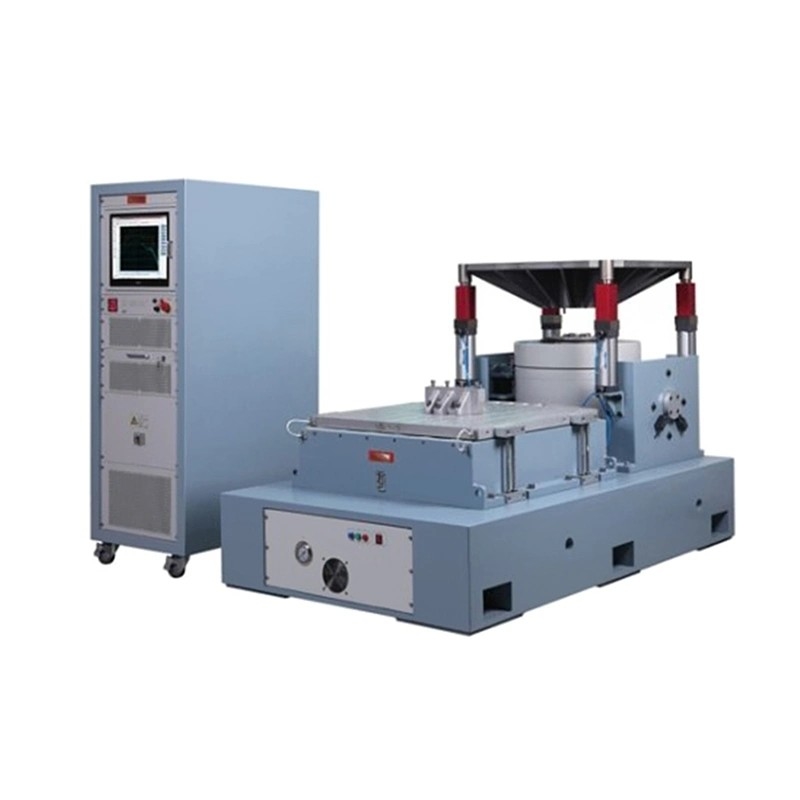

Vibration And Impact Testing Machine High Frequency Vibration Table Vibration Testing Machine
Vibration Test Machine Application:
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
Vibration Test Machine Main Features:
1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation
Vibration Test Machine Specification:
|
Model
|
GSKA-340
|
GSKA-350
|
GSKA-420
|
GSKA-430
|
GSKA450
|
|
Vibration Generator
|
VG4000/76
|
VG5000/76
|
VG2000/100
|
VG3000/100
|
VG5000/100
|
|
Frequency
(Hz)
|
2-2500
|
2-2500
|
2-3000
|
2-2500
|
2-2500
|
|
Max Exiting Force(kg.f)
|
4000
|
5000
|
2000
|
3200
|
5000
|
|
Max. Displacement (mmp-p)
|
76
|
76
|
100
|
100
|
100
|
|
Max. Acceleration
(g)
|
80
|
100
|
90
|
71
|
71
|
|
Max. Velocity(cm/s)
|
200
|
200
|
200
|
250
|
250
|
|
Payload(kg)
|
1000
|
1000
|
500
|
500
|
1000
|
|
Armature Mass(kg)
|
50
|
50
|
23
|
45
|
70
|
|
Armature Diameter
(mm)
|
φ440
|
φ440
|
φ320
|
φ400
|
φ445
|
|
Cooling Method
|
Forced Air Cooling
|
460
|
720
|
920
|
1600
|
|
Vibration Generator Weight(kg)
|
2000
|
2500
|
3500
|
3800
|
3000
|
|
Vibration Generator Dimension L*W*H(MM)
|
1400*900*1100
|
1400*980*1100
|
1600*1120*1340
|
1600*1120*1340
|
1100*1300*1440
|
|
Power Amplifier
|
Amp35k
|
Amp50k
|
Amp60k
|
Amp70k
|
Amp45k
|
|
Cooling Method
|
Forced Air Cooling
|
||||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
