Product Details:
|
| Cooling Type: | Air Cooling Or Water Cooling | Controller: | Programmable LCD Touch Screen |
|---|---|---|---|
| Temperature Fluctuation: | ±1.0℃ | Temperature Uniformity: | ±2.0℃ |
| Customized Support: | OEM | Power: | 380VAC±10% 50Hz |
| Condenser: | Water-cooled Condensing Agent | Controller Resolution: | ±0.3℃；±2.5%RH |

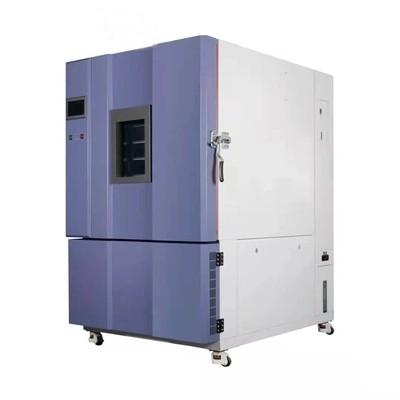

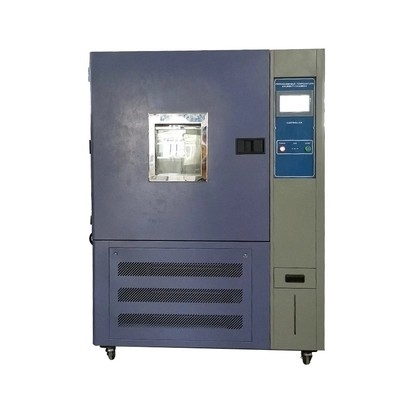

380V Environment Climatic Test Chamber Multifunctional With LCD
Feature:
1. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
2. Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
3. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
4. A integrated silic gel door gasket, air tightness is very good, and long operation life.
5.The inner box is mirror-polished , graceful and non-pollution pct pressure cooker test,pressure cooker test
6. Automatic adding water function, and automatic filling water upon the water short storage while testing.
7. Automatic operation to test process finished, easy to use.
8. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
Design and development
We have extensive experience in the design and development of non-standard equipment according to the customer's specifications.
Industrial (laboratory) drying ovens, laboratory thermostats, various test climatic chambers, muffle (high-temperature) furnaces can be made according to your dimensions with a wide variety of characteristics and parameters.
It is intended for research and quality control of various materials, products, components, assemblies, structures, mechanisms, measuring instruments, etc. associated with temperature exposure at low temperatures down to -30 ° С and positive up to + 100 ° С and humidity from 10% to 98% at certain temperatures (on request).
| Size |
Inner size (W*H*D cm) |
40*50*40 | 50*60*50 | 60*85*80 | 100*100*80 | 100*100*100 |
|
Outer size (W*H*D cm) |
90*136*94 | 100*146*104 | 110*171*137 | 150*186*137 | 150*186*157 | |
| Performance | Control Methods | Balanced temperature humidity control system (BTHC) PID intelligent adjust | ||||
| Temperature and Humidity Range | -70°C~100 °C(150°C) ; 20%-98%R.H (A: -20°C B: -40°C C: -60°C D: -7°C) |
|||||
| Accuracy | ±1.0°C, ±2%RH / ±0.5°C, ±2%RH | |||||
| Resolution | ±0.1°C, ±0.1%.H / ±1°C, ±3%RH | |||||
| Heating Rate | ≤3°C/min | |||||
| Cooling Rate | Average 1°C/min | |||||
| Internal Material | SUS#304 stainless steel | |||||
| External Material | SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray) | |||||
| Insulation Material | Superfine wool + polyurethane foam | |||||
| Regulator | Cooling Mode | Mechanical binary refrigeration way | ||||
| Compressor | Closed compressor (French Tecumseh or German Copeland ) | |||||
| Refrigerant | R23/R404A | |||||
| Condensing Way | Air-cooling and Water-cooling | |||||
| Humidifier | Stainless steel humidifying tube | |||||
| Airflow Way | Broadband-type forced air circulation | |||||
| Controller | Operate Interfaces | Korea TEMI 880 LCD touch screen | ||||
| Memory capacity | 120 groups, each program 100 segment | |||||
| Input | PT100 or T thermocouple | |||||
| Communicate Interface | RS-232 | |||||
| Subsidiary function | Upper and lower alarm; self diagnosis ; alarm display(fault cause); time sequence protection (Automatic turn on or turn off ) | |||||
| Water supply | Water supply | Circulating water supply | ||||
| Water tank | Built-in hand type(30Kg capacity) | |||||
| Water quality | resistance >500Ω.m | |||||
| Standard Configuration | One observe window(Double hollow toughened glass);one test pattern D50mm(on the left); 2 layers sample frame; one floodlight(fluorescent lamp);one water feeding tank; | |||||
| Safety device | Power leakage protection; Dry heating protection; Water system protection Over-temperature protection switch; Temperature deviation alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc. | |||||
Corresponding Standard:
GB11158 GB10589-89 GB10592-89
GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001
GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93
ASTM D1735 EIA - 364-59 IEC60068-2-1.1990
IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
