Product Details:
|
| Quality: | Certificated ISO9001 CE Thermal Shock Chamber | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Application: | Electrics |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Thermal Shock Chamber |
AC380V 50Hz/60Hz Environment Test Chamber US304 Stainless Plate
product description:
Thermal shock testing simulates the extreme temperature changes a product might be exposed to during real-life use in the hands of customers. For example, think of the jolt a smartphone battery experiences when somebody moves between cold winter conditions outside to the heated space of a home.
Or the contrast in temperatures airplane parts must endure, departing an airport runway in 95-degree weather and then encountering -40°F to -70°F when reaching peak altitude.

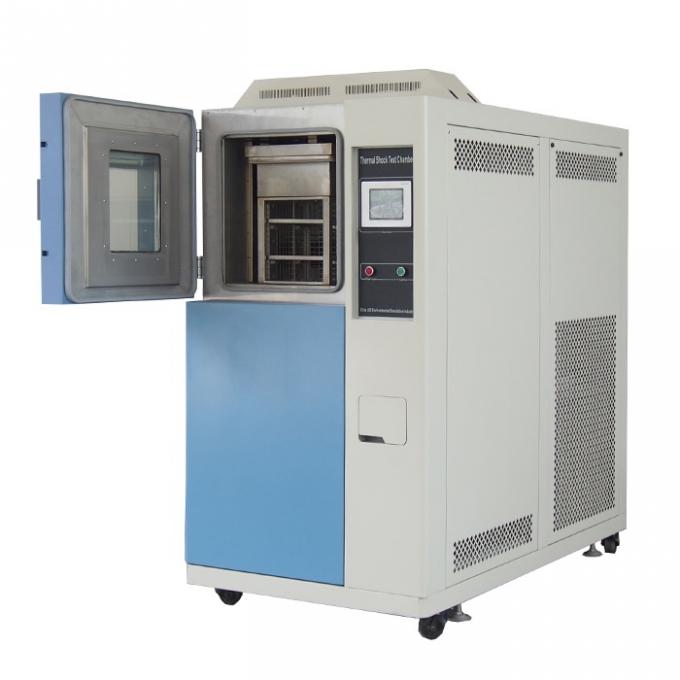

Thermal shock chambers are the means through which alternating extreme hot and cold air is applied to products to test their durability and identify breaking points. The method reduces the potential for failures. These chambers feature two zones, one for heat, one for cold, with an optional third zone for ambient temperature.
| Internal size WxHxD (cm) | 40 x 35 x 30 | 50x40x40 | 60 x 50 x 50 | 70 x 60 x 60 | 80x75x75 |
| External dimensions WxHxD (cm) | 140x180x145 | 148x190x155 | 160x200x175 | 175x210x187 | 190x220x200 |
| Temperature range (test area) | Low temperature -45℃ ~ 65°C; High temperature: up to +150°C; | ||||
| Heating time (heat storage area) | RT~200℃ takes about 35min | ||||
| Cooling time (cold storage area) | RT~-70℃ takes about 85min | ||||
| Recovery time | ≤5min/ ≤10 seconds | ||||
| Temp.Control accuracy | ±0.5°C/ ±2.0°C | ||||
| Insulation material | High temperature resistant high density ethyl chloroformate foam insulator material | ||||
| System | P. I. D + S. S. R + microcomputer balance temperature control system | ||||
| Cooling system | Semi-enclosed two-stage compressor (water-cooled) / fully enclosed two-stage compressor (air-cooled) | ||||
| Safety protection device | Non-fuse switch, compressor high and low pressure protection switch, refrigerant high pressure protection switch, fault warning, system, electronic alarm | ||||
| Accessories | 2 upper and lower adjustable compartments, power test hole, casters, horizontal bracket | ||||
| power supply | AC380V 50Hz/60Hz3 | ||||
| Weight (approximately) | 700Kg | 900Kg | l200Kg | 1400Kg | 1900Kg |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Ways of service:
● Solve the problems in using the test chambers timely and Effectively
● Response within 6 hours once got questions from customers.
● Engineers available to service machines overseas to install and commissioning
● Training how to install, operate and maintain the machine
● On-site diagnosis and repair / Online diagnosis and repair
● Business Negotiations
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
