Product Details:
|
| Usage: | Constant Temperature And Humidity Test | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |

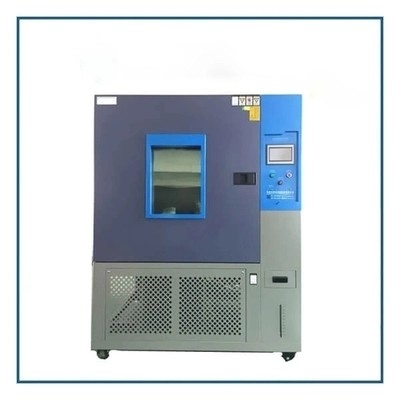

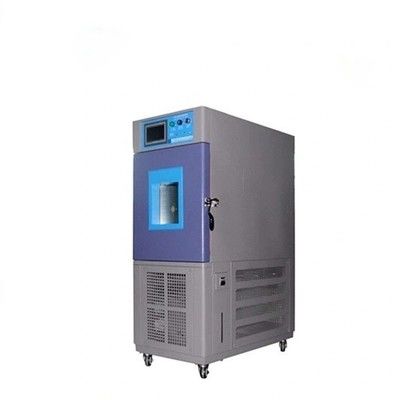

220V Humidity Temperature Test Chambers 215KG Explosion Proof
Features:
1. clear touch screen display panel provides user easly operation.
2. Constructed using full stainless steel material ensure long life span.
3.Fitted with transparent glass for easy viewing.
4.Various types of safety warnings to protect chamber from abnormal operation.
Optional Accessories:
1. Low humi. Dehumidifying system
2. Inner glass door with manual operating ports
3. Temp./ humi. Recorder
4. Pure water treatment device
5. Reverse osmosis water purifier
6. RS-485 interface can be linked to PC and achieve multi-level control and recording software management.
7. LN2 / LCO2 fast cooling-down system
Application :
| Power Supply Source | 220V |
| Temperature Range | - 40°C ~ +150°C |
| Temperature Accuracy | ±2°C |
| Humidity Range | 20% ~ 98% RH (0.1 % resolution) |
| Humidity Control Accuracy | ±5% RH |
| Inner and outsize material | 34 stainless steel |
| Compressor | France, Taikang compressor |
| Heater | Explosion-proof type USU#304 Stainless Steel fins radiator pipe heater |
| Insulation Material | 50 mm high density rigid Polyurethane foam |
| Observation Window | Tempered Glass,size 300x275mm (LxW) |
| Testing Hole | Diameter 50mm, for cable routing |
| Safety Protection Device | Protection for leakage, over-temperatured, compressor overvoltage & overload, heater short circuit and water shortage |
| Internal Dimensions (LxWxH) | 500x500x600 mm |
| Dimensions(LxWxH) | 1110x1230x1600 mm |
| Net/G Weight | 215KG/255KG |
Control:
English LCD display LCD touch-panel, the screen on the input data, and programmable temperature and humidity, backlight adjustable 17, curve, curve of setting/display value. Can display a variety of alerts, failure occurs through the screen display, eliminating failures, eliminate misuse. Multi-PID control functions, sophisticated monitoring functions, and the data displayed on the screen.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
