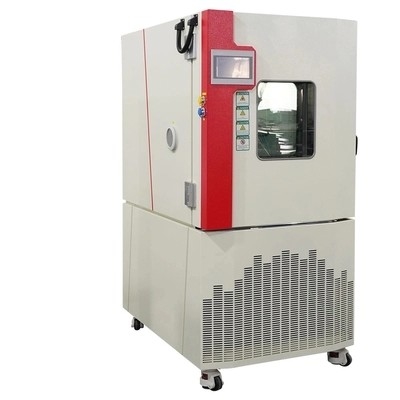

Ac 220v High Pressure Test Chamber Test Chamber With 7" Tft Screen

Ac 220v High Pressure Test Chamber Test Chamber With 7" Tft Screen
Ac 220v High Pressure Test Chamber Test Chamber With 7" Tft Screen Ac 220v High Pressure Test Chamber Test Chamber With 7" Tft Screen

Large Image :  Ac 220v High Pressure Test Chamber Test Chamber With 7" Tft Screen

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: Temperature Humidity Chamber
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: Export package
Delivery Time: 10-60days after confirmed payment or by contract stipulation
Payment Terms: L/C, T/T
Supply Ability: 100 Set / Sets per Month

Ac 220v High Pressure Test Chamber Test Chamber With 7" Tft Screen

Body Materials: SUS#304 Stainless Steel Plate Temperature Fluctuation: ±1.0℃
Customized Support: OEM Condenser: Water-cooled Condensing Agent
Screen Size &Display: 7" TFT-LCD Temperature Uniformity: ±2.0℃
Power: 220V , 50Hz Controller Resolution: ±0.3℃;±2.5%RH

Ac 220v High Pressure Test Chamber Test Chamber With 7" Tft Screen




Accelerated life testing chamber, rapid chamge temperature testing systems is widely applied for quality inspection for all types of electric products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries by constant high low temperature change, damp heat etc environment simulation reliability test.

The scientific name of high and low temperature environmental test box "high and low temperature test box" refers to a test box that simulates the natural environment. It mainly tests whether the product is resistant to high and low temperature. To test and determine the parameters and performance of electrical, electronic and other products and materials subjected to high temperature, low temperature, or constant temperature environment changes.


Internal size WxHxD(cm)
50x60x50 60x75x50 60x85x80 100x100x80 100x100x100
External size WxHxD(cm) 120x165x115 130x170x125 140x185x130 165x195x155 185x200x175 190x210x185
Weight (about) 150KG 180KG 250KG 350KG 500KG 520KG
Temperature range Low temperature: A: -40°C or -70 °C High temperature: up to 150°C
Humidity range 20%~98% R.H. Optional 10%~98%R.H or 5%~98% R.H
Distribution accuracy 0.1P 0.1%R.H./±2.0P ±3.0%R.H.
Temp and humi control accuracy ±0.5t) ±2.5%R.H.
Heating/cooling time Heating about: 3°C/min Cooling: 1°C /min
Internal and external materials The inner and outer boxes are made of SUS304# stainless steel plate
Insulation material High temperature resistant high density ethyl chloroformate foam insulation material
Cooling system Air-cooled
Safety device No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection
Power supply AC220V 50/60Hz & 1 # AC380V 50/60Hz3§


Environmental testing:

Companies in all industries—but especially those that produce electronics, medical devices, automobiles, and anything that operates with a lithium-ion battery—put their products and components that make up those products through rigorous environmental tests. These diagnostics simulate conditions to identify weaknesses in designs and set expectations (hence those warranties) for customers.

This is completed with the use of environmental test chambers. Here’s everything you need to know about test chambers: the different types of models, how they work, use cases, and more.

Product Usage:

This series of products is suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components to test their performance indicators in high and low temperature or humid and hot environments.


Application :

Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test (ESS)
Environmental stress screening (ESS) refers to the process of exposing a newly manufactured or repaired product or component (typically electronic) to stresses such as thermal cycling and vibration in order to force latent defects to manifest themselves by permanent or catastrophic failure during the screening process. The surviving population, upon completion of screening, can be assumed to have a higher reliability than a similar unscreened population.
ESS can be performed as part of the manufacturing process or it can be used in new product qualification testing.

We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
