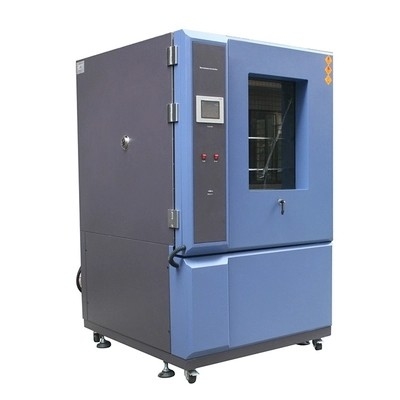

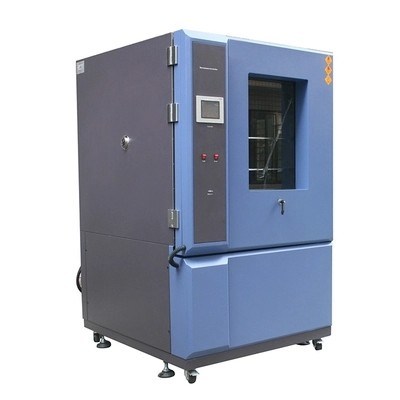

80L-1000L Humidity Temperature Test Chambers With USB Interface

80L-1000L Humidity Temperature Test Chambers With USB Interface

1. Graceful appearance, circularly shaped body for , surface treated with mist strips and plane handle with no reaction. Our temperature humdity climatic chamber is easy to operate, safe and reliable.

2. Rectangular double-glassed watching window for the observation of the test production during the testing process.The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.

3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R23, R404A)

6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.

7. The controller of environmental chamber has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.

8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.

Standard configuration:

● Stainless steel exterior

● Energy-efficient refrigeration with exclusive electronic expansion valve system

● Specialized humidity generation and control

● Unique thermal break construction for extreme testing

● Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m

● No fuse breaker, over pressure,over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection

Box structure:

1. The box body is processed and formed by CNC machine tools, with beautiful appearance and non-reaction handle, which is easy to operate.

2. The inner tank of the box is made of imported high-grade stainless steel (SUS304) mirror panel, and the outer tank of the box is sprayed with A3 steel plate, which increases the appearance texture and cleanliness.

3. The water replenishment tank is placed in the lower right part of the control box, and has automatic water shortage protection, which is more convenient for the operator to replenish the water source.

4. The large observation window is equipped with lights to keep the inside of the box bright, and the tempered glass embedded in the heating body is used to clearly observe the situation in the box at any time.

5. The humidification system pipeline is separated from the control circuit board, which can avoid failure due to water leakage in the humidification pipeline and improve safety.
