Product Details:
|
| Application: | New Energy Vehicles | Max. Load Of Shelf: | 30kgs |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Controller: | Programmable Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |

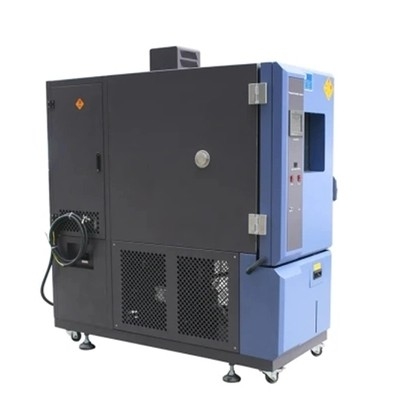

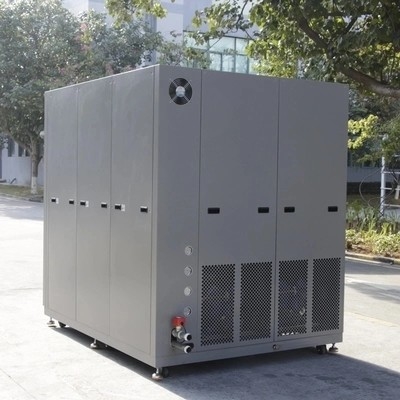

New Energy Vehicle Parts Temperature Environment Climate Test Chamber 1000L
Application:
New Energy Vehicles Auto Parts 1000L -80 degrees 10%RH High Low Temperature Humidity Cycle Environment Climate Test Chamber, is used for material performance test under different environment, such as heat, cold, moisture, heat and moisture, mainly applied in electronics, electrical appliances, mobile, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other industries.
Definition of new energy vehicles:
New energy vehicles is also known as alternative fuel vehicles, include pure electric vehicles, fuel cell electric vehicles and other vehicles that use all non-petroleum fuels, as well as hybrid electric vehicles, ethanol gasoline vehicles and some other vehicles that use non-petroleum fuels. All existing new energy vehicles are included in this concept, which are divided into six categories: hybrid vehicles, pure electric vehicles, fuel cell vehicles, alcohol ether fuel vehicles, natural gas vehicles, etc.
New energy vehicle reliability test: including climate environment test (including high and low temperature storage test, high and low temperature operation test, warm storage and operation test, temperature cycle test, thermal shock test, high and low temperature limit test, IP protection test, salt spray test) and mechanical environmental test (including vibration, drop test). Guangdong Yuanyao Test Equipment Co., Ltd. can provide this series of reliability environmental testing equipment, providing one-stop testing equipment solutions for new energy vehicles and new energy auto parts customers.
technical parameters:
| Model | GSKA-080 | GSKA-150 | GSKA-225 | GSKA-408 | GSKA-800 | GSKA-1000 |
| Inner chamber size W×H×D(cm) | 40×50×50 | 50×60×50 | 50×75×50 | 80×85×60 | 100×100×80 | 100×100×100 |
| Exterior chamber size W×H×D(cm) | 60×172×120 | 70×174×130 | 70×172×181 | 100×182×197 | 120×197×197 | 120×197×217 |
| Testing temperature range | -80ºC, -70ºC,-60ºC,-40ºC,-20ºC,0ºC~150ºC,Other temperature can be customized | |||||
| Testing humidity range | 20%RH~98%RH(Low humidity 10%RH~98%RH or 5%RH can be customized) | |||||
| Temp.humi.fluctuation | ±0.5ºC;±0.5%RH | |||||
| Temp.humi.uniformity | ±2ºC;±3% empty loading after stablize for 30mins ±2ºC;±3%RH | |||||
| Temp.humi.resolution | 0.01ºC;0.1%RH | |||||
| Heating&cooling time ºC/min | Heat-up:3ºC/min(average),cool-down:1ºC/min(average) | |||||
| Exterior chamber material | Cold rolled plate + Powder coating | |||||
| Interior chamber material | SUS#304 Stainless steel | |||||
| Insulation material | PU | |||||
| Circulation system | Centrifugal fan air circulation system | |||||
| Heating system | SUS# Stainless steel high-speed heater | |||||
| Humidification system | Electrothermal steam humidification | |||||
| Dehumidifying | ADP critical dew point cooling / dehumidifying method | |||||
| Refrigeration system | Compressor + Finned evaporator + Air(Water) cooling condenser | |||||
| Controlling system | Touch screen controller | |||||
| Other components | Vacuum glass observation window | |||||
| Test hole(50mm) | ||||||
| Controller status indicator | ||||||
| View light | ||||||
| Compartment shelf (2 freely adjustable) | ||||||
| Safety protection device | Overheat protection circuit breaker | |||||
| Humidification system overheat protection | ||||||
| Compressor overload protection | ||||||
| Control system overload protection | ||||||
| overload indicator | ||||||
| Phase sequence protection | ||||||
| Water shortage protection | ||||||
| High voltage and low voltage protection | ||||||
| Over temperature protection | ||||||
| Water supply delay protection | ||||||
| Fan overcurrent protection | ||||||
| Power supply | AC 1ψ220V;3ψ380V 60/50Hz | |||||
| Customization service | Non-standard or special requirements are all welcome | |||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
