Product Details:
|
| Specification: | (W*H*D)40*50*40CM | Color: | Can Be Customized |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Transport Package: | Strong Wood Case For Climatic Chamber | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |

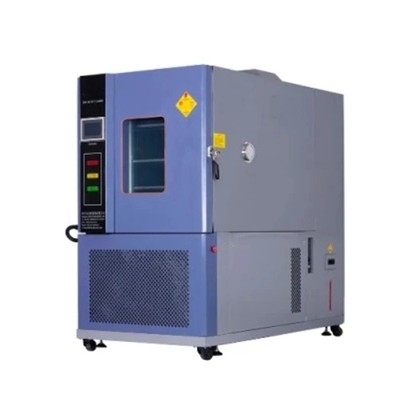

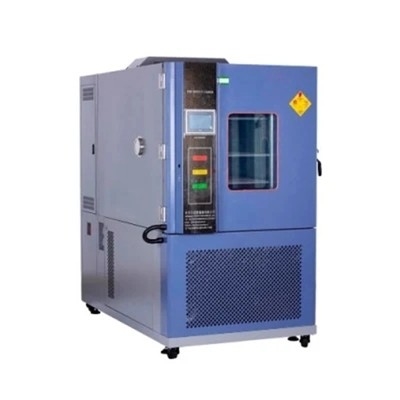

Chemical Temperature And Humidity Environment Test Chamber 500L
Features:
*.High-texture appearance, the body adopted an arc shape, surface matte stripes processing, and flat-handle, easy to operate, safe and reliable.
*.Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window witt anti-sweat heaters device prevents water gas condensate ,Knot, water droplets, PL fluorescent lamps to keep the inside lighting.
*.Door bunk isolated airtight packing, can be effectively isolated from the internal temperature of the leak
*.With external water supply system, convenient to supplement the cylinder water supply, and automatic recovery using.
*.Compressor cycling system used France"Tecumseh"brand which can effectively remove condenser pipe and between capillary Lubricating oil and whole series adopt environmental protection refrigerant (R23, R404, R507)
*.Controller uses the imported LED display screen, can display measured values and setting time
*.Controller with multisegment program editor and temperature and humidity can be fast (OUICK) or slope (SLOP) controlled.
*.Built-in mobile wheels allow easy movement and placed and has a strong positioning screw position.
technical parameters:
| Model | GSKA-80 | GSKA-100 | GSKA-200 | GSKA-400 | GSKA-800 | GSKA-1000 |
| Inner size W*H*DCM |
40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*800 | 100*100*100 |
| External size W*H*DCM | 90*143*100 | 100*153*110 | 110*168*110 | 130*178*120 | 150*193*140 | 150*193*160 |
| Temperature range | -70°C~+150°C(180°C) (A:-20°C B:-40°C C:-60°C D:-70°C ) |
|||||
| Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H) | |||||
| Temp humidity analytic accuracy / uniformity |
±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition. | |||||
| Temperature humidity control accuracy/fluctuation |
±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H. | |||||
| Heat/cooling time | About 5.0°C/min;about 1.2°C/min (5~10°C/min is a special optional condition | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer. | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system | Air cooling/single segment compressor(-20°C) ,air and water double segment compressor (-40°C~-70°C) |
|||||
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
|||||
| Parts | Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze | |||||
| Controller | TEMI" South Korea"TEMI" "OYO" Japan's "OYO" Brand optional | |||||
| Compressor | Original France"Tecumseh"brand | |||||
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | |||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
