Product Details:
|
| Pressure Range: | Normal Pressure 0.5kpa 500pa) | Temp Fluctuation: | ±0.5% |
|---|---|---|---|
| Internal Chamber: | Stainless Steel(SUS304) | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Altitude Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Brand: | GSKA | Power: | Electronic, Electronic |

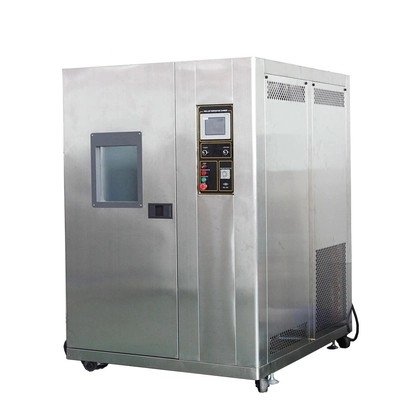

500pa Altitude Test Chamber Temperature Humidity Lcd Touch Screen
Characteristics:
1. Environment Test High Low Temperature Humidity Pressure Altitude Test Chamber Main box structure internal pressure structure
2. Environment Test High Low Temperature Humidity Pressure Altitude Test Chamber Control system of temperature and humidity: fan, heater, evaporator,h umidifier
3. Refrigeration mode: mechanical compression binary refrigeration system
4. Vacuum units: rotary vane vacuum pump
5. Control panel: temperature, humidity and pressure controlled display screen, over temperature protection device, light switch.
Application Field:

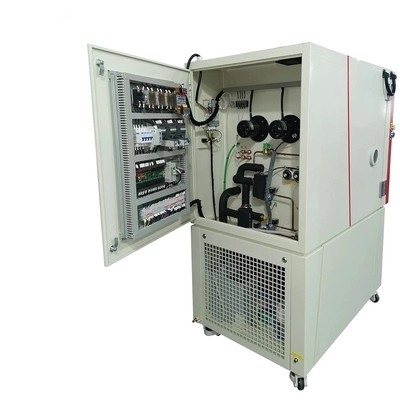

Environment Test High Low Temperature Humidity Pressure Altitude Test Chamber ,Electrical,electronic,military industry and household products.According to GB,GJB and IEC standard,to do Low pressure test chamber high low temperature,humidity thermal,low pressure and other environmental and reliability test. General introduction: This equipment is composed of test room formed by pressure-containing box shell and insulation structure, refrigeration system, add wet system,vacuum system and electric control system and other components. precision instruments, and to a great extent electronics parts in general.
| Internal volume (L) |
80L
|
150L
|
225L
|
400L
|
1000L
|
|
Inner box size
W*H*D(cm)
|
40*50*40 |
50*60*50
|
60*70*60
|
70*80*70
|
100*100*100
|
|
Carton size
W*H*D(cm)
|
115*180*110
|
125*190*130
|
135*200*150
|
150*215*165
|
180*235*200
|
|
Temperature range
|
Low temperature R:-20℃;L:-40℃;S:-60℃ → high temperature +150℃
|
||||
|
Temperature uniformity
|
±2℃
|
||||
|
Control stability
|
±2.0℃
|
||||
|
Temperature deviation
|
≤2.0℃
|
||||
|
Rising and cooling rate
|
Heating up 1.0～4.0℃/min; cooling down 0.7～2.0℃/min
|
||||
|
Cooling method
|
Two-stage refrigeration
|
||||
|
Cooling method
|
water-cooled
|
||||
|
Inner box material
|
SUS304 stainless steel(3.0 thickening)
|
||||
| Outer box material |
Electrostatic spraying of steel plate
|
||||
| Refrigeration Compressors |
French Taikang Hermetic Compressor/German Bitzer Semi-hermetic Compressor
|
||||
| Controller | LCD touch screen | ||||
| Protector | Leakage circuit breaker, phase loss, reverse phase protection, overheating, overload protection | ||||
| Electric source | AC 380V | ||||
Applicable Industries:
Can be used in electrical products, materials, spare parts, equipment, etc, for single featured test--high temperature, low temperature and altitude(under 30,000 or 45,000 meters) test and comprehensive test--- heat-and-cool circulation test, temperature-and-altitude test.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
