Product Details:
|
| Humidifier: | Semi-closed Steam | Temp Fluctuation: | ±0.5% |
|---|---|---|---|
| Internal Chamber: | Stainless Steel(SUS304) | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Altitude Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Brand: | GSKA | Power: | Electronic |

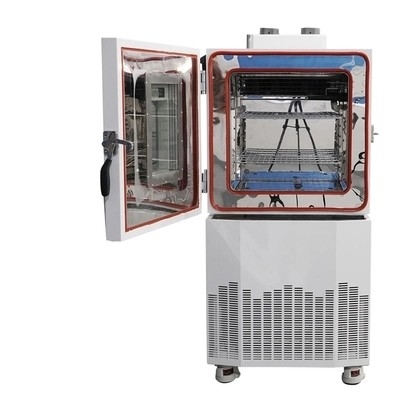

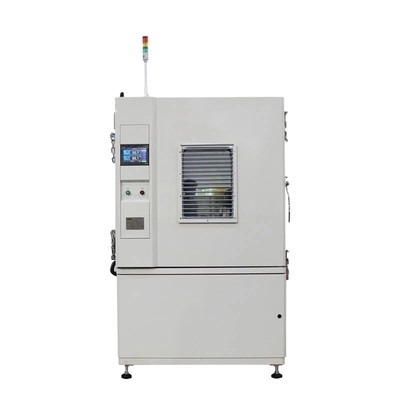

OEM Climatic Altitude Test Chamber Explosion Proof Electronic Power
Product Use :
This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Standards: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc.
Structure:
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Characteristics:
1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature&humidity well-distributed, precisely and steady.
3.Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Feature:
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
| Internal volume (L) |
80L
|
150L
|
225L
|
400L
|
1000L
|
|
Inner box size
W*H*D(cm)
|
40*50*40 |
50*60*50
|
60*70*60
|
70*80*70
|
100*100*100
|
|
Carton size
W*H*D(cm)
|
115*180*110
|
125*190*130
|
135*200*150
|
150*215*165
|
180*235*200
|
|
Temperature range
|
Low temperature R:-20℃;L:-40℃;S:-60℃ → high temperature +150℃
|
||||
|
Temperature uniformity
|
±2℃
|
||||
|
Control stability
|
±2.0℃
|
||||
|
Temperature deviation
|
≤2.0℃
|
||||
|
Rising and cooling rate
|
Heating up 1.0～4.0℃/min; cooling down 0.7～2.0℃/min
|
||||
|
Cooling method
|
Two-stage refrigeration
|
||||
|
Cooling method
|
water-cooled
|
||||
|
Inner box material
|
SUS304 stainless steel(3.0 thickening)
|
||||
| Outer box material |
Electrostatic spraying of steel plate
|
||||
| Refrigeration Compressors |
French Taikang Hermetic Compressor/German Bitzer Semi-hermetic Compressor
|
||||
| Controller | LCD touch screen | ||||
| Protector | Leakage circuit breaker, phase loss, reverse phase protection, overheating, overload protection | ||||
| Electric source | AC 380V | ||||
Applicable Industries:
Can be used in electrical products, materials, spare parts, equipment, etc, for single featured test--high temperature, low temperature and altitude(under 30,000 or 45,000 meters) test and comprehensive test--- heat-and-cool circulation test, temperature-and-altitude test.
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
