Product Details:
|
| Pressure Range: | 101Kpa~1Kpa | Temp Fluctuation: | ±0.5% |
|---|---|---|---|
| Internal Chamber: | Stainless Steel(SUS304) | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Altitude Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Brand: | GSKA | Power: | Electronic, Electronic |

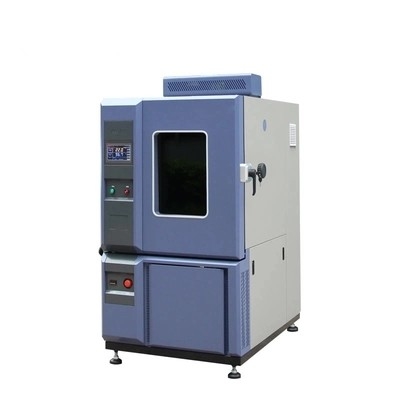

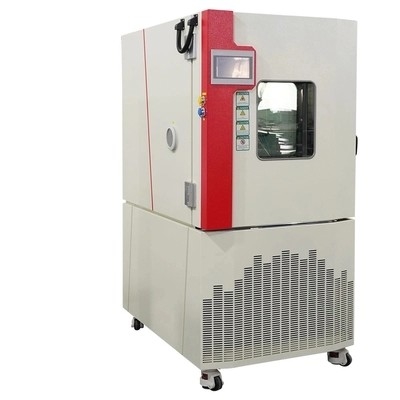

Universal Constant Temperature Humidity Test Chambers For Shoe Industry
Product Use:
Function:
1. To simulate test environment with various altitude environments .
2. It is especially important for defense and aerospace applications where pressure and vacuum conditions are even more intense
3. Application fields: Include Aviation, aerospace, communications, electronics, electrical appliances etc.
4. Test Purpose: to guarantee the maximum quality and reliability while products or material might encounter at various altitude levels.
Safety devices:
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
| Internal volume (L) |
80L
|
150L
|
225L
|
400L
|
1000L
|
|
Inner box size
W*H*D(cm)
|
40*50*40 |
50*60*50
|
60*70*60
|
70*80*70
|
100*100*100
|
|
Carton size
W*H*D(cm)
|
115*180*110
|
125*190*130
|
135*200*150
|
150*215*165
|
180*235*200
|
|
Temperature range
|
Low temperature R:-20℃;L:-40℃;S:-60℃ → high temperature +150℃
|
||||
|
Temperature uniformity
|
±2℃
|
||||
|
Control stability
|
±2.0℃
|
||||
|
Temperature deviation
|
≤2.0℃
|
||||
|
Rising and cooling rate
|
Heating up 1.0～4.0℃/min; cooling down 0.7～2.0℃/min
|
||||
|
Cooling method
|
Two-stage refrigeration
|
||||
|
Cooling method
|
water-cooled
|
||||
|
Inner box material
|
SUS304 stainless steel(3.0 thickening)
|
||||
| Outer box material |
Electrostatic spraying of steel plate
|
||||
| Refrigeration Compressors |
French Taikang Hermetic Compressor/German Bitzer Semi-hermetic Compressor
|
||||
| Controller | LCD touch screen | ||||
| Protector | Leakage circuit breaker, phase loss, reverse phase protection, overheating, overload protection | ||||
| Electric source | AC 380V | ||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
