Product Details:
|
| Temp Range: | -70°C~+150°C | Temp Fluctuation: | ±0.5% |
|---|---|---|---|
| Internal Chamber: | Stainless Steel(SUS304) | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Altitude Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Brand: | GSKA | Authentication Certificate: | CE SGS ROHS UL |

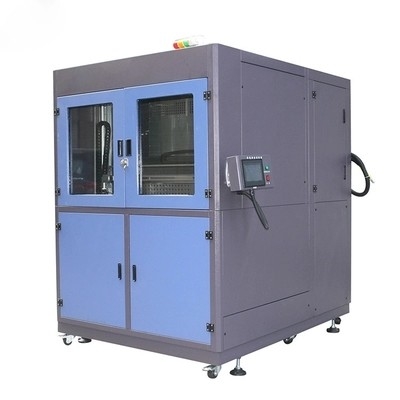

Temperature-70 ~170ºC Temp Humidity Chamber Touch Display Screen
High altitude low pressure simulation test:
chamber can combine temperature and altitude environment with optional humidity for simultaneous environmental testing. It’s used in aerospace,communications, information,electronics,electrical and so on. This combination of elements allows precise simulation of real-life condition a product might encounter at various altitude levels.
Features:
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7. Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
Application Field:
Altitude test chamber ,Electrical,electronic,military industry and household products.According to GB,GJB and IEC standard,to do
Low pressure test chamber high low temperature,humidity thermal,low pressure and other environmental and reliability test.General introduction: This equipment is composed of test room formed by.pressure-containing box shell and insulation structure, refrigeration system, add wet.system,vacuum system and electric control system and other components.precision instruments, and to a great extent electronics parts in general.
specification:
| Temperature Range | Room temperature |
| Display Mode | PLC touch screen display (7-inch touch screen) + remote control |
| Unit | Kpa |
| Internal Chamber Dimension | W600xD600xH600 mm |
| External Chamber Dimension | W940xD780xH1620 mm |
| Internal Chamber Material | Reinforced steel + stainless steel (thickness 6.0mm) |
| External Chamber Material | SECC steel plate, Fine powder paint coating (thickness 1.5mm) |
| Timing Range | 99H 59M 59S |
| Observation Window | 390 X 360mm(20mm thick tempered glass with explosion-proof film) |
| Air Pressure | Normal pressure ~5Kpa (Adjustable) |
| Controlling Mode | PLC touch screen display + remote control |
| Power Supply | AC 220V / 50HZ / 1KW |
| USB Interface | With USB interface, the test data can be output |
| Options | Video surveillance system, terminal device |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
