Product Details:
|
| Pressure Range: | 101kpa ~1kpa | Temp Fluctuation: | ±0.5% |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Key Word: | Altitude Test Chamber | Temp Range: | -70°C~+150°C |
| Internal Chamber: | Stainless Steel(SUS304) | Test Time: | 1~9999 Minutes(arbitrary Setting) |

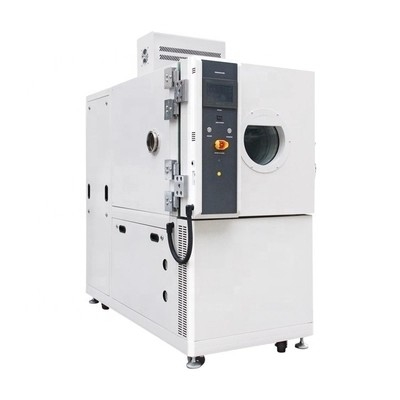

101kpa-1kpa High Altitude Test Chamber SUS304 Stainless Steel
Characteristics:
1. Altitude test chamber Main box structure internal pressure structure
2. Climatic chamber temperature humidity altitude low pressure test chamber Control system of temperature and humidity: fan, heater, evaporator,humidifier
3. Refrigeration mode: mechanical compression binary refrigeration system
4. Vacuum units: rotary vane vacuum pump
5. Control panel: temperature, humidity and pressure controlled display screen, over temperature
protection device, light switch.
Application Field:
Altitude test chamber ,Electrical,electronic,military industry and household products.According to GB,GJB and IEC standard,to do
Low pressure test chamber high low temperature,humidity thermal,low pressure and other environmental and reliability test.General introduction: This equipment is composed of test room formed by.pressure-containing box shell and insulation structure, refrigeration system, add wet.system,vacuum system and electric control system and other components.precision instruments, and to a great extent electronics parts in general.
specification:
| Inner Size (D*W*H)mm | 600*600*700 | 800*700*900 | 1000*1000*1000 | 1200*1400*1200 | |
| Capacity(KW) | 11 | 15 | 16 | 18 | |
| Chamber Volume(L) | 252 | 504 | 1000 | 2160 | |
| Specifications | Temp range | -70℃~+150℃ | -70℃~+150℃ | -70℃~+150℃ | -70℃~+150℃ |
| Temp fluctuation | ±0.5% | ||||
| Temp deviation | ≥100℃, ±3.0℃(at 101kPa, ATM no load) | ||||
| <100℃, ±2.0℃(at 101kPa, ATM no load) | |||||
| Cooling rate | 0.7℃~1.0℃/min (Average) | ||||
| Pressure range | 101kPa ~1kPa | ||||
| Pressure accuracy | ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa) | ||||
| Depressurization rate | 101kPa ~1kPa≤30mins (Room temp) | ||||
| Pressure recovery rate | 10kPa/Min(adjustable) | ||||
Safety devices:
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
Features:
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
