Product Details:
|
| Cooling Model: | Water Cooling | Temp Fluctuation: | ±0.5% |
|---|---|---|---|
| Internal Chamber: | Stainless Steel(SUS304) | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Altitude Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Brand: | GSKA | Power: | Electronic, Electronic |

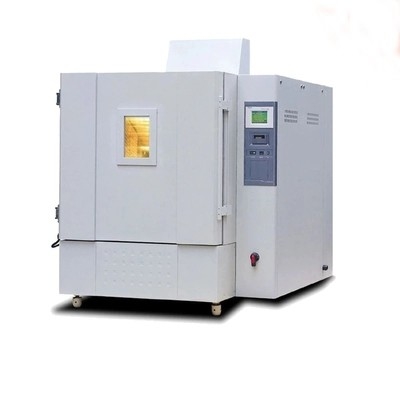

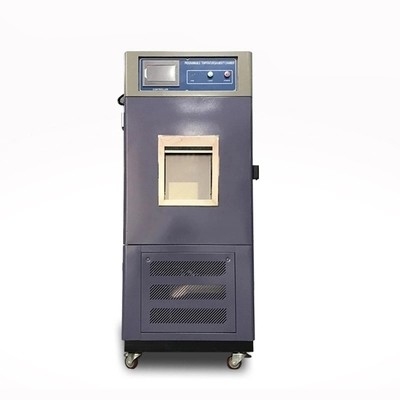

80L High Low Temperature Cycle Test Chamber Anticorrosive AC 380V
Product Use :
Safety devices:
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
Feature:
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7. Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
| Internal volume (L) |
80L
|
150L
|
225L
|
400L
|
1000L
|
|
Inner box size
W*H*D(cm)
|
40*50*40 |
50*60*50
|
60*70*60
|
70*80*70
|
100*100*100
|
|
Carton size
W*H*D(cm)
|
115*180*110
|
125*190*130
|
135*200*150
|
150*215*165
|
180*235*200
|
|
Temperature range
|
Low temperature R:-20℃;L:-40℃;S:-60℃ → high temperature +150℃
|
||||
|
Temperature uniformity
|
±2℃
|
||||
|
Control stability
|
±2.0℃
|
||||
|
Temperature deviation
|
≤2.0℃
|
||||
|
Rising and cooling rate
|
Heating up 1.0～4.0℃/min; cooling down 0.7～2.0℃/min
|
||||
|
Cooling method
|
Two-stage refrigeration
|
||||
|
Cooling method
|
water-cooled
|
||||
|
Inner box material
|
SUS304 stainless steel(3.0 thickening)
|
||||
| Outer box material |
Electrostatic spraying of steel plate
|
||||
| Refrigeration Compressors |
French Taikang Hermetic Compressor/German Bitzer Semi-hermetic Compressor
|
||||
| Controller | LCD touch screen | ||||
| Protector | Leakage circuit breaker, phase loss, reverse phase protection, overheating, overload protection | ||||
| Electric source | AC 380V | ||||
Applicable Industries:
Can be used in electrical products, materials, spare parts, equipment, etc, for single featured test--high temperature, low temperature and altitude(under 30,000 or 45,000 meters) test and comprehensive test--- heat-and-cool circulation test, temperature-and-altitude test.
Structure:
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
