Product Details:
|
| Cooling: | 0.7-1.5 C/min Non-linear No-load | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |

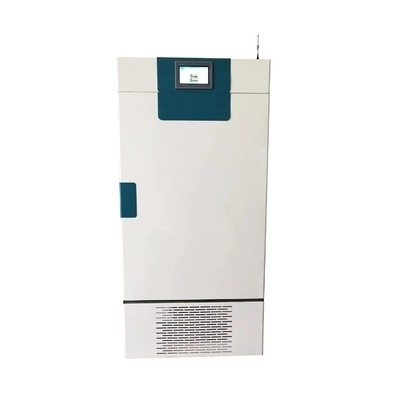

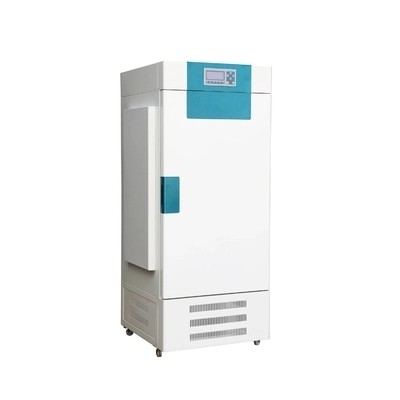

CE Temperature And Humidity Controlled Cabinet Power Supply 220V + 10% V 50Hz
Main Technical Indicators of Test Box:
1. The size of the studio is 400 x 400 x 500 mm (width x depth x height);
2. Shape size: 950 x 1050 x 1400 mm (width x depth x height);
3. Temperature range: - 40 ~+150 ℃;
4. Temperature fluctuation: <0.5 ℃; Temperature uniformity: <2 ℃; Resolution: 0.01 ℃.
5. Temperature rise and fall rate:Cooling: 0.7-1.5 C/min non-linear no-load Temperature rise: 3-5 C/min non-linear no-load
6. Humidity range: 20%-98% R.H (AT+25 ~85 ℃)
7. Humidity fluctuation: <1.5%; Humidity uniformity: +2-3% R.H; Resolution: 0.1%.( The above indexes were measured at ambient temperature < 25 C, atmospheric pressure, no load and 1/6 space away from the inner wall of the box.)
8. Power: about 4KW;
9. Power supply: 220V + 10% V; 50Hz;
10. External Material: Drawn Stainless Steel
11. Internal Material: SUS # Mirror Stainless Steel
12. Heat-breaking materials: PU foam + glass wool
13. Other configurations: viewing window (30*26cm), test hole (50*1)
14. Safety device: no fuse overload protection, compressor overheating, overcurrent, overpressure, heating and dry burning, overtemperature alarm system in the box
Technical Specification:
| Interior Dimension (mm) | 400×500×400 | 500×600×500 | ||
| Overall Dimension (mm) | 90×142×100 | 100×152×110 | ||
| Interior Dimension (mm) | 600×850×800 | 800×1000×1000 | ||
| Overall Dimension (mm) | 1210×1140×1960 | 1280×1480×2030 | ||
| Parameter | Temp. range | Model S:-70°C~+150°C ,Model L: -40°C~+150°C | ||
| Humidity Range | 20% ~ 98% R.H | |||
| Humidity bias | +2~-3%R.H | |||
| Temp. fluctuation | ≤±0.5°C | |||
| Temp. uniformity | ≤2°C | |||
| Heating rate | 1.0~3.0°C/min | |||
| Cooling rate | 1~1.5°C/min | |||
| Material | Shell material | High-quality SUS304 stainless steel plate | ||
| Liner material | High-quality SUS304 stainless steel plate | |||
| Insulation materials | Ultra-fine glass fiber insulation cotton / rigid polyurethane foam | |||
| Door seal | Double resistance to high and low temperature aging and hardening of refined silicone seal | |||
| Cold and heat exchange system | Controller | JIANQIAO Special color touch screen Controller | ||
| Accuracy range: temperature ± 0.1 °C, indicating accuracy: temperature ± 0.1 °C, resolution: ± 0.1 °C | ||||
| Circulatory system | Temperature low-noise motors, cycles, , stainless steel multi-leaf type centrifugal fan,the test time can set 999999 hours | |||
| Water supply | Electronic device controller automatic control of liquid, and more than recycled water, with water alarm | |||
| Humidification mode | External isolated, stainless steel electric steam humidification mode occurs | |||
| Dehumidification mode | Condensation method using the dew point temperature of the evaporator coil dehumidification mode laminar contacts | |||
| Refrigeration | Unit cooling mode / Dual (cascade) cooling method (air-cooled) | |||
| Condenser/ Evaporator | Tecumseh | |||
| Compressor | France " Tecumseh " closed refrigeration compressor / France "Taikang" Hermetic Refrigeration Compressors | |||
| Security Devices | Power overload, leakage, grounding, over-temperature protection (with voice prompts), fast fuse, compressor over-voltage protection | |||
| Standard |
Resistant to high and low temperature heat tempered glass hollow glass windows: 300 × 200 (mm), a lighting, , the two sample holder, |
|||
| Power supply | ACø220V·50HZ/380V·50HZ | |||
| Ambient temperature | 15°C~+30°C ≤85%R.H | |||
Working principle:
Easy To Operating Temperature Humidity Chamber (heating and cooling) and humidification is composed of two parts. Through installation in box within top Department of rotating fan, will air row into box achieved gas cycle, and balance box within of temperature, and humidity, by box built-in of temperature, and humidity sensor collection of data, biography to temperature, and humidity controller (micro information processing device) for edit processing, issued thermostat adjustable wet instruction, through air heating unit, and condensation tube and sink within heating evaporation unit of common completed.
