Product Details:
|
| Interior Material: | SUS 304 | Temp Fluctuation: | ±0.5% |
|---|---|---|---|
| Internal Chamber: | Stainless Steel(SUS304) | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Altitude Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Brand: | GSKA | Power: | Electronic, Electronic |

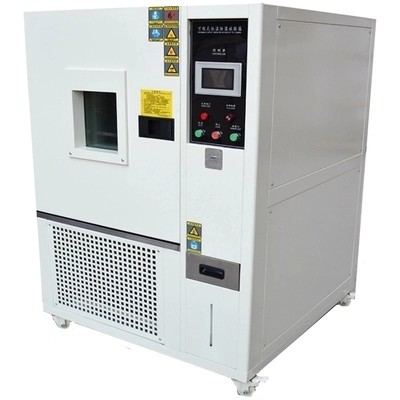

Multi-Role Benchtop Temperature Chamber LED Touch LCD Screen
High Low Temperature Humidity Pressure Altitude Test Chamber:
An altitude chamber combines temperature and low-pressure altitude with optional humidity to test basic components or sub-assemblies for a variety of industries, such as defense, aerospace, avionics, automotive, electronics and others.
Here are two common appliations of an altitude test chamber :
- Testing of avionics or other aerospace equipment to simulate actual conditions it might experience
- Simulation of high-altitude conditions like might be found in mountainous regions and plateau
And such an altitude test chamber is especially important for defense and aerospace applications where pressure and vacuum conditions are even more intense.
We can provide custom-built altitude chambers for simultaneous testing of temperature, low-pressure altitude and optional humidity conditions.
Our altitude/temperature and altitude/temperature/humidity chambers offer performance flexibility and reliablility for today's mixed-environment testing requirements with an overall temperature range of -70°C to +150°C, optional humidity capabilities of 20% to 98% RH and altitude up to 200,000 feet.
Characteristics:
1. Environment Test High Low Temperature Humidity Pressure Altitude Test Chamber Main box structure internal pressure structure
2. Environment Test High Low Temperature Humidity Pressure Altitude Test Chamber Control system of temperature and humidity: fan, heater, evaporator,h umidifier
3. Refrigeration mode: mechanical compression binary refrigeration system
4. Vacuum units: rotary vane vacuum pump
| Pressuren Range | Atmospheric pressure～0.5kpa | ||
| Temperature Uniformity | ≤2℃ | ||
| Temperature Fluctuation | ±0.5℃ | ||
| Ramp up Rate | -25℃～100℃≤50min | ||
| Ramp Down Rate | 25℃～-20℃≤60min | ||
| Depressurization Time | (Atmospheric pressure～0.5kpa)≤45min | ||
| Inner material | Mirror Stainless Steel-SUS#304 | ||
| Exterior Material | A3 Steel board with powder coated | ||
| Observing Window | 1 PC(215×275mm)/(395*395mm); | ||
| Sensor | PT-100Ω Dry &Wet Bulb | ||
| Insulation way of Chamber | Glass fiber cotton or polyurethane foam | ||
| Heater | Nickel-chromium naked wire heating | ||
Optional accessories:
1, Low Humidity and Dehumidifying sytstem.
2, Inner glass door with manual operating ports.
3, Temp./Humi.Recorder.
4, Pure water treatment device
5, RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
6, Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
