Product Details:
|
Compressor: | French Tecumseh Brand, Germany Brand | Humidity Range: | 20%-98%RH |
---|---|---|---|
Temperature Variation: | ±2℃ | Cooling Rate: | Average 1.0℃/min, Or 15℃/min |
Keyword: | Temperature Humidity Test Chamber | Temperature Range: | -70℃~180℃ |
Heating Rate: | ≥2.5°C/min | Applied Standard: | IEC60068 Series |

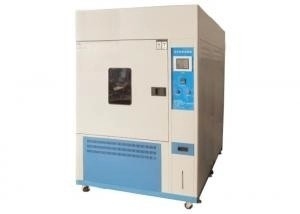

Stainless Steel Tank Humidity Testing Chamber Humidity Range 20%-98%RH
Usage of temperature humidity test chamber :
It is applied to test the capabilities of heat-resistance, cold-resistance, dry-resistance and moisture-resistance of materials. It is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature and humid environment when storage, transport and using
Thermal shock testing simulates the extreme temperature changes a product might be exposed to during real-life use in the hands of customers. For example, think of the jolt a smartphone battery experiences when somebody moves between cold winter conditions outside to the heated space of a home.
Or the contrast in temperatures airplane parts must endure, departing an airport runway in 95-degree weather and then encountering -40°F to -70°F when reaching peak altitude.
Thermal shock chambers are the means through which alternating extreme hot and cold air is applied to products to test their durability and identify breaking points. The method reduces the potential for failures. These chambers feature two zones, one for heat, one for cold, with an optional third zone for ambient temperature.
Specifications Of temperature humidity test chamber :
Mode | THC-21000 | |
Inner Size W×H×D(cm) |
100×100×100 | |
Outside Size W×H×D(cm) |
158×195×168 | |
Volume (V) | 1000L | |
Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|
Function | Fluctuation | ±0.5°C ±2.5%RH |
Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |
Material | Inner Wall | #SUS 304 Stainless steel |
Outer Skin | #SUS 304 Stainless steel | |
Heat Preservation |
High temperature resistant, high chlorine acid b vinegar foam insulation materials |
|
Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |
Refrigeration Way | Single stage compression refrigeration | |
Refrigerater | French Tecumseh | |
Refrigerants | R4O4A USA Dupont environmental protection refrigerant(R23+R404) | |
Condensing Way | Air-cooled or water-cooled | |
Heater | Nickel chrome heating wire heater | |
Humidifier | Semi-closed steam and wet | |
Water Suplying Way | Automatic cycling water supply | |
Standard Accessories |
1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
|
Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch, fuse stoppage warning system |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
1000L Constant Environmental Laboratory Temperature Humidity Test Chamber CE Certificaiton for you , welcome to inquiry .
