Product Details:
|
| Feature: | Easy To Operate | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Cooling Type: | Water Cold | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Temperature Humidity Chamber |

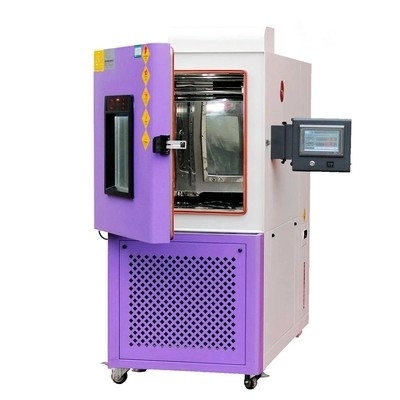

Stainless Steel SUS 304# Small Temperature Chamber Touch Display Screen
product description:
High and low temperature test chamber: suitable for reliability test of high temperature and low temperature of industrial products. To test the various performance indicators of the parts and materials of related products such as electronic and electrician, automobile and motorcycle, aerospace, ship weapons, colleges and universities, scientific research units, etc. under the condition of high temperature and low temperature (alternating) cycle.
The product has a wide temperature control range, and its performance indicators all meet the technical conditions of the national standard GB10592-89 high and low temperature test chamber. B: High temperature test method "The product is subjected to low temperature, high temperature test and constant temperature test. Products comply with GB2423.1, GB2423.2, GJB150.3, GJB150.4, IEC, MIL standards.

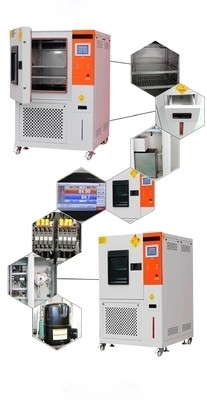

Features
1.Material quality of inner box is SUS304 # mirror-face stainless steel, outer box is steel plate with powder coated. Box body is processed shape using CNC machine tool, its shape is beautiful and fine.
2.Equipped with large glass window to view testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3.Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4.With an external water supply system can be easy to supply water and automatically reuse.
5.Cooling system adopt French originated Tecumseh compressor, more effective removal of oil between the condenser and the capillary and use environmentally refrigerants ( R23, R404).
6.Imported LCD touch screen controller, can display measured values, set values and time.
Technical Specification:
| Inside size WxHxD
(cm)
|
40x50x40
|
|
|
|
100x100x80
|
|
|
| Outside size WxHxD
(cm)
|
|
|
|
|
|
|
|
| Temperature range | -70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
||||||
| Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition) | ||||||
| Accuracy/ uniformly | ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. | ||||||
| Accuracy / volatility | ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. | ||||||
| Heating / cooling time | About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) | ||||||
| Inside material | Stainless steel SUS 304# | ||||||
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | ||||||
| Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage
compressor(-40℃~-70℃)
|
||||||
| protection | compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system | ||||||
| accessories | recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball | ||||||
| controller | TEMI300 digital controller from South Korea | ||||||
| compressor | France Tecumceh | ||||||
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | ||||||
Chamber Summary:
Easy To Operating Performance of climate temperature humidity test chamber for electronics, plastic products, electrical appliances, instruments, metals, chemicals, building materials, food, vehicles, aerospace, medical ... Products of quality.
Easy To Operating Temperature Humidity Chamber specially test various materials resistance to heat, cold, dry, wet performance
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
