Product Details:
|
| Shock Temperature Ragne: | -65°C~150°C | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Box Material: | SUS 304 Stainless Steel | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Environmental Chambers |

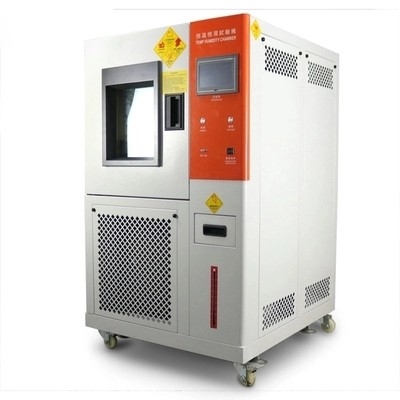

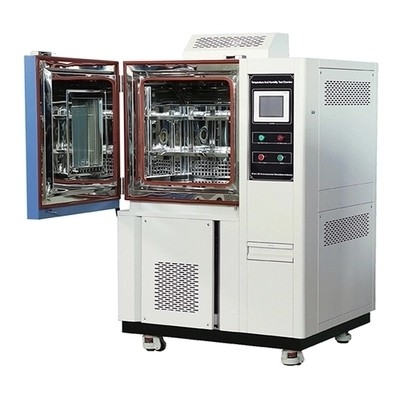

Oem Dustproof Environmental Stress Test Chamber Temperature -65°C~150°C
Test Standard:
1. IEC - 529 dustproof test method
2. GB4208-93 dustproof test method
3. GB2423.37-89 dustproof test method
4. GJB150.12 dustproof test method
Chamber Design Features:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
Specifications :
| Inner size WxHxD(cm) | 36×40×35 | 40×50×40 | 50×60×50 | 60×75×50 | 80×85×60 |
| External size WxHxD(cm) | 138x180x155 | 150X190X160 | 190x200X195 | 210x220X205 | 225x250x220 |
| Shock Temperature ragne | -65°C~150°C | ||||
| Heating up time | RT~200°C about 35min | ||||
| Cooling down time | RT~-70°C about 90min | ||||
| Temp recover time/change time | ≤5min / ≤10sec | ||||
|
Temp control accuracy/ distribution accuracy |
±0.5°C / ±2.0°C | ||||
| Inner materials |
SUS 304# stainless steel plate for inner chamber,and stainless steel plate + spray painting for external chamber. |
||||
| Insulation materials | High-temperature high-density amino acid ethyl ester foam insulator material. | ||||
| Systems | P.I.D+S.S.R+Microcomputer balanced temperature control system. | ||||
| Cooling systems |
Semi-hermetic two-stage compressor (water-cooled) / hermetic two-stage compressor (air-cooled). |
||||
| Safety devices |
Fuse switch, high and low pressure protection switch compressors, refrigerant pressure protection switch failure warning system, electronic siren. |
||||
| Fitting |
Outlook window (special purchase), the upper and lower adjustable compartment two energized measured line hole, casters,level bracket. |
||||
| Power | 3 phase AC108V-380V 50HZ/60HZ | ||||
| Controller | Taiwan TATO or TH900C | ||||
| Compressor | Germany Bitzer Brand | ||||
Working principle of chamber:
Centrifugal fan is the main source of dust movement, the high-speed operation of the fan so that dust into the fan due to the centrifugal force of the role of fan blades into the dust pipe dust. The wind speed of the pipeline is usually more than 7.5m / s (too low wind speed will make the dust precipitate in the pipeline will cause the test tube can not work). The dust line was sprayed from above into the test chamber and passed through the sample at a rate of> 2 m / s. Sand and dust chamber As the lower part of the working box for the funnel, it can precipitate down the dust into the lower part of the 72 × 50um filter. Through the vibrating motor vibration, less than the diameter of the filter hole in the dust and centrifugal fan sucked so back and forth.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
