Product Details:
|
| Control Interface: | LCD Touch Screen | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Caster: | Safe And Easy Mobility | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Environmental Chambers |

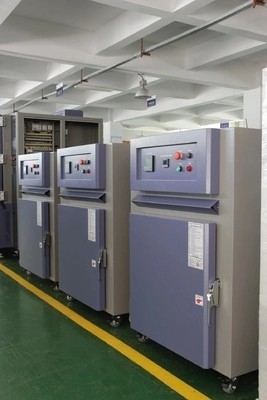

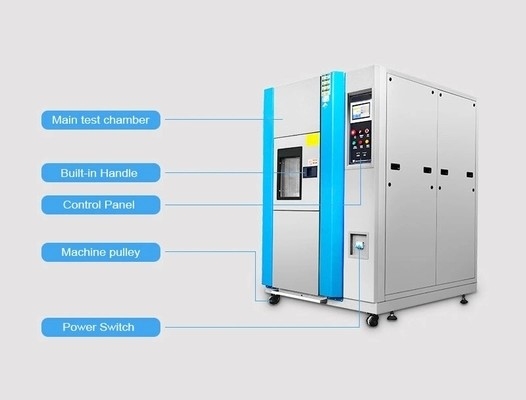

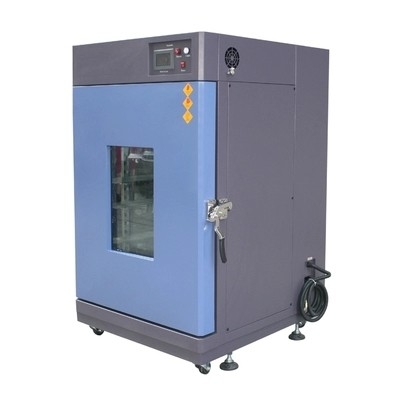

60Hz Environmental Temperature Humidity Test Equipment 80L-1000L
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy mantain
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
Features:
A. Reliability testing based on current test standards in the temperature range of -70 °C to 180 °C and 10% to 98% R.H.
B. The ideal simulation chamber for all heat and cold testing in the traditional temperature range -70 ºC and 180 ºC.
C. Forced ventilation loops design, balance temperature & humidity control system .
D. We can provide custom-made machine and optional accessories satisfied your special requirements.
E. Improved programming and data collection via computer
Specifications :
| Inner size WxHxD(cm) | 36×40×35 | 40×50×40 | 50×60×50 | 60×75×50 | 80×85×60 |
| External size WxHxD(cm) | 138x180x155 | 150X190X160 | 190x200X195 | 210x220X205 | 225x250x220 |
| Shock Temperature ragne | -65°C~150°C | ||||
| Heating up time | RT~200°C about 35min | ||||
| Cooling down time | RT~-70°C about 90min | ||||
| Temp recover time/change time | ≤5min / ≤10sec | ||||
|
Temp control accuracy/ distribution accuracy |
±0.5°C / ±2.0°C | ||||
| Inner materials |
SUS 304# stainless steel plate for inner chamber,and stainless steel plate + spray painting for external chamber. |
||||
| Insulation materials | High-temperature high-density amino acid ethyl ester foam insulator material. | ||||
| Systems | P.I.D+S.S.R+Microcomputer balanced temperature control system. | ||||
| Cooling systems |
Semi-hermetic two-stage compressor (water-cooled) / hermetic two-stage compressor (air-cooled). |
||||
| Safety devices |
Fuse switch, high and low pressure protection switch compressors, refrigerant pressure protection switch failure warning system, electronic siren. |
||||
| Fitting |
Outlook window (special purchase), the upper and lower adjustable compartment two energized measured line hole, casters,level bracket. |
||||
| Power | 3 phase AC108V-380V 50HZ/60HZ | ||||
| Controller | Taiwan TATO or TH900C | ||||
| Compressor | Germany Bitzer Brand | ||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
