Product Details:
|
| Materials: | SUS#304 Stainless Steel Plate | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Caster: | Safe And Easy Mobility | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Environmental Chambers |

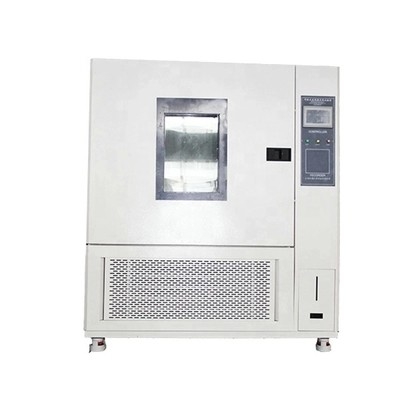

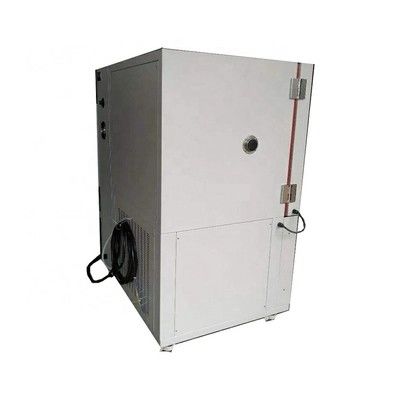

SUS304 Stability Environmental Test Chamber Multifunctional 220V
Optional Accessories of test chamber:
1. Low humi. Dehumidifying system
2. Inner glass door with manual operating ports
3. Temp./ humi. Recorder
4. Pure water treatment device
5. Reverse osmosis water purifier
6. RS-485 interface can be linked to PC and achieve multi-level control and recording software management.
7. LN2 / LCO2 fast cooling-down system
Temperature humidity test chamber is use to test material heat,cold,dry resistance, humidity resistance.Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
| Inner chamber size
w×h×d(cm)
|
40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | ||
| Exterior chamber size
w×h×d(cm)
|
90×140×95 |
100×150×105
|
100×165×115 | 110×175×135 | 150×190×135 | 150×190×155 | ||
| Testing temperature range | -73℃ ,-60℃,-40℃,-20℃,0℃~150℃,180℃ | |||||||
| Testing humidity range | 20%RH~98%RH(10%RH~98%RH Or 5%RH~98%RH) | |||||||
| Performance | Temp.humi.fluctuation | ±0.2℃,±0.5%RH | ||||||
| Temp.humi.uniformity | ±1.5℃;±2.5%RH(RH≤75%),±4%(RH>75%)empty load,after stabilization | |||||||
| Temp.humi.resolution | 0.01℃;0.1%RH | |||||||
| Heating-up time | ℃ | 10 0 15 0 | ||||||
| min | 30 40 | 30 40 | 30 45 | 30 45 | 30 45 | 30 45 | ||
| Cooling-drow time | ℃ | 0 -20 -40 -60 -70 | ||||||
| min | 25 40 50 70 80 | |||||||
| Material | Exterior chamber material | Stainless steel+Powder coating | ||||||
| Interior chamber material | SUS#304 Stainless steel | |||||||
| Insulation material | PU fiberglass wool | |||||||
| System | Air circulation system | Cooling fan | ||||||
| Heating system | SUS#Stainless steel high-speed heater | |||||||
| Humidification system | Surface evaporation system | |||||||
| Refrigeration system | Imported tecumseh compressor+
fin type evaporator+air(water)cooling system
|
|||||||
| Dehumidifying system | ADP critical dew point cooling/dehumidifying method | |||||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||||
| Other components | Multi-layer vacuum glass observation window,cable port(50mm),
controlling status indicator lamp,chamber light,specimenloading
shelf(2pcs,position adjustable) |
|||||||
| Safety protection device | Over-heat protection circuit breaker,compressor overload protection,
control system overload protection,humidifying system overload
protection indicator lamp |
|||||||
| Power supply | AC 1 phase 220V;3 phase 380V 60/50Hz | |||||||
| Customization service | Non-standard or special requirements are all welcome | |||||||
Features:
1. Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of
uniformity within the box within ± 2 ℃
2. Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit,
surface water pollution
3. Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface
temperature condensation
4. The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within
75db./Other Contact us
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
